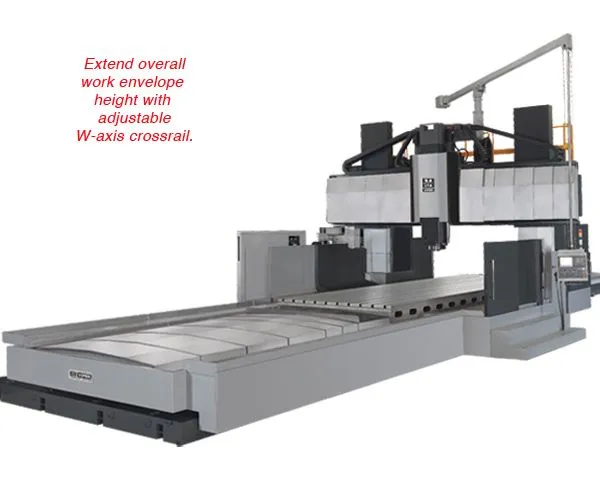

The PMW bridge mill provides five-face machining, and features a variable height (W-axis) crossrail, that allows operator to vary spindle-to-table distance. Extend overall work envelope height with adjustable W-axis for enhanced five-face machining. Increasing spindle-to-table distance on conventional fixed crossrail bridge mill can compromise spindle stability with adjustment of W-axis. Allows for easier access to core and cavity mold spaces—to short and tall work envelopes.
MACHINE SPECIFICATION
Machine Model x232 x237 x242
X-Travel 160 ~ 401
Y-Travel 126 145 165
Z-Travel 35 / 43*
W-Axis 39 / 67*
Nose Taper #50
Speed (Gear) rpm 6000
Speed (Gear) rpm 8,000*
Motor** hp 25/30* hp
CNC Control Fanuc
Unit= inch | *Optional accessory | **30 minute rating
