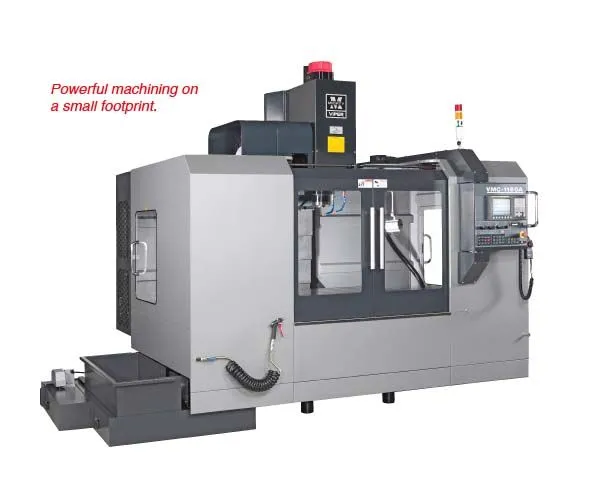

VMC-1160. Has a box structure body casting that yields high rigidity. Spindle configurations available in direct drive, belt and gear to meet application need.
Performance Specifications
Longitudinal Travel (X-axis) 43
Cross Travel (Y-axis) 23
Vertical Travel (Z-axis) 25
Spindle Nose Taper #40 / #50
Spindle Speed (Gear) 6000 / 8000* rpm
Spindle Drive Motor** 10 / 15 hp
CNC Control Fanuc
Units = inch *Optional accessory **30 min. rating
