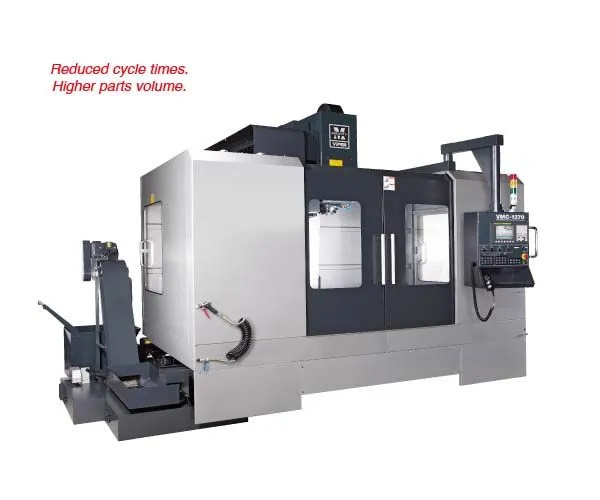

VMC -1370. Has a box structure body casting that yields high rigidity. Bed base uses high rigidity 4-slide ways for heavy loading capacity and superior cutting.
Performance Specifications
Longitudinal Travel (X-axis) 51
Cross Travel (Y-axis) 27
Vertical Travel (Z-axis) 27
Spindle Nose Taper #50
Spindle Speed (Gear) 6000 rpm
Spindle Speed (DDS) 10,000 rpm*
Spindle Drive Motor** 20 / 25 hp
CNC Control Fanuc
Units = inch *Optional accessory **30 min. rating
