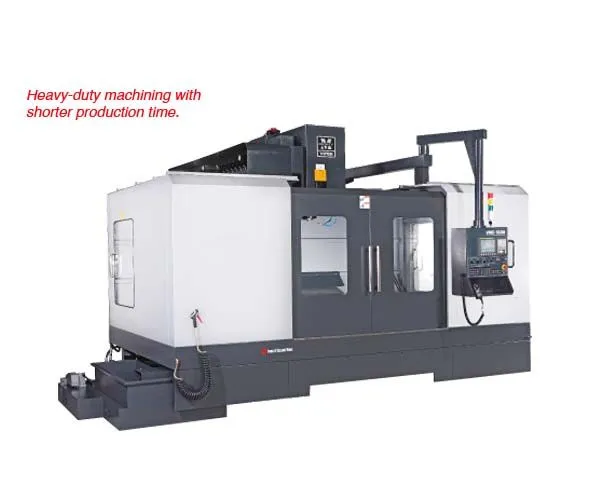

VMC -1688. Has a box structure body casting that yields high rigidity. Bottom plate and base are one-piece casting to ensure against leakage and provide excellent chip removal.
Performance Specifications
Longitudinal Travel (X-axis) 63
Cross Travel (Y-axis) 35
Vertical Travel (Z-axis) 28 /35*
Spindle Nose Taper #50
Spindle Speed (Gear) 6000 rpm
Spindle Speed (DDS) 10,000 rpm
Spindle Drive Motor** 20/25 hp
CNC Control Fanuc
Units = inch(mm) *Optional accessory **30 min. rating
