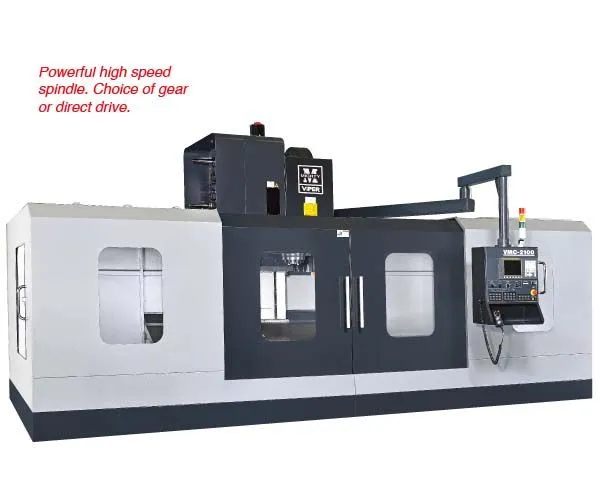

VMC -2100 ~ 4100. Has a box structure body casting that yields high rigidity. Bed base has a 6-slide ways design for high rigidity and heavy loading capacity, along with superior cutting.
Longitudinal Travel (X-axis) 83 ~ 122
Cross Travel (Y-axis) 40
Vertical Travel (Z-axis) 42
Spindle Nose Taper #50
Spindle Speed (Gear) 8000 / 6000 / 4000 rpm
Spindle Speed (Gear) 10,000 rpm
Spindle Drive Motor** 35 hp
CNC Control Fanuc
Units = inch *Optional accessory **30 min. rating
