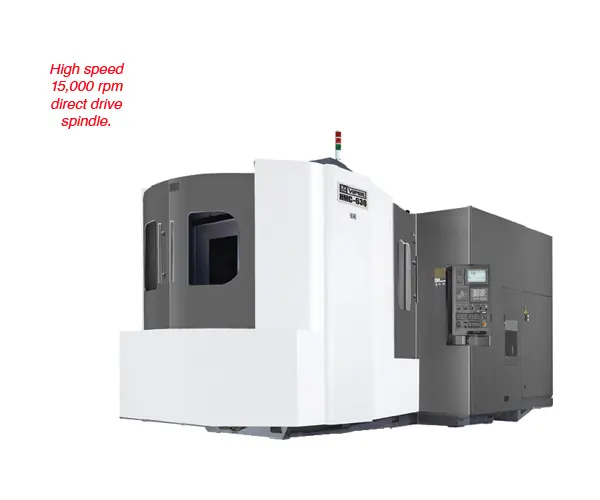

HMC Horizontal Machining Center – Designed with high rigidity on all three axes. High loading 2-step gear spindle. Position feedback on all three axes controlled by absolute encoder.
MACHINE SPECIFICATIONS
Machine Model 630 800 1000
X-Travel 28 55 67
Y-Travel 31 47 55
Z-Travel 18 52 60
Table Pallet 24 x 24 31 x 31 39 x 39
Nose Taper #50
Speed (Gear) rpm — 6000 6000
Speed (Built-In) rpm 10,000 10,000 10,000
Motor** hp 25 / 50*
Units = inch *Optional accessory **30 minute rating
