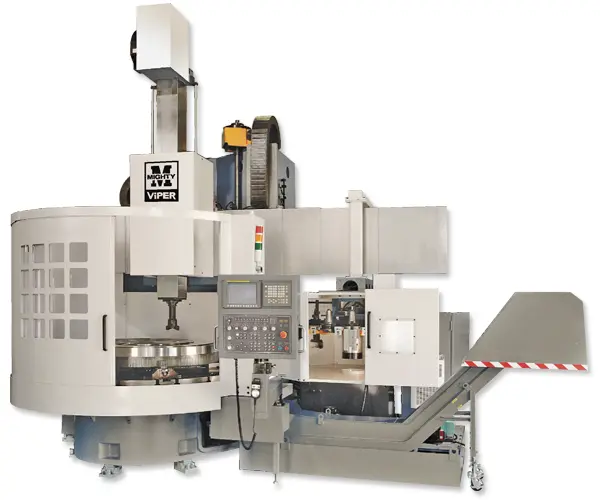

11/14~30/40 VTL-Series is designed for large parts turning and features an optional milling function. The VTL-11/14 is desgned with optional twin turrets for simultaneous O.D. and I.D. cutting.
Table Diameter 43.3~118 (1100~3000)
Turning Diameter Max. 51.18~157 (1200~4000)
Swing Max. 55.1~157 (1600~4000)
Table Load Max. 9900~66,000 lbs
XZ-Axis Stroke 47×27.5~161×59 (1035×1000~4100×1500)
Table Speed (2-Step) 1~120, 85~300 rpm
Crossrail Stroke 31.5~ 59.06 (800~1500)
Crossrail Step 7.87×4 (200×4)~7.87×6 (200×6)
Main Table Motor** 50~100 / 40*~80* hp
Live Spindle Motor** 15 /20* / 25* hp
ATC Tools 12/18
Units = inch(mm) TT = Twin turrets *Optional accessory **30 min. rating
