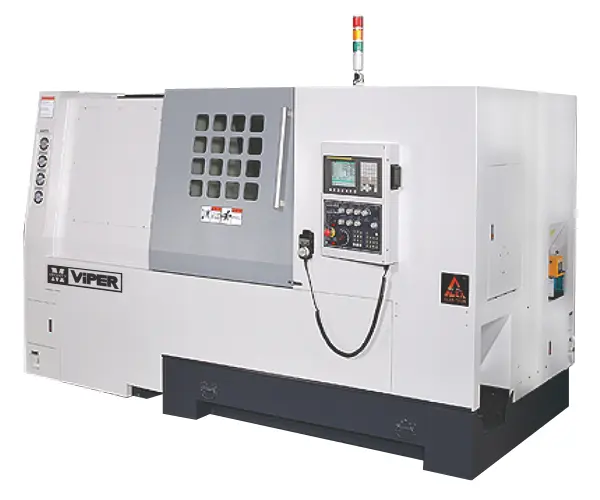

20~22 VT-Series. Easier set-up for shorter more productive cycle times. Features a 24 inch swing. Fast rapid rates of 787 ipm and 945 ipm.
Machine Model 21 23
Swing Over Bed 24.4 (620)
Max. Turning Diameter 15.35 (390)
Max. Turning Length 24 (610)
X-Travel 7.3+1.6 (185+40)
Z-Travel 24.4 (620)
Spindle Nose Type A2-6 A2-8
Spindle Thru Hole 2.4 (61) 3.2 (81)
Bar Capacity 2.0 (51) 2.6 (61)
Spindle Speed Range 5,000 rpm 4,500 rpm
Spindle Drive Motor** 20 / 35* hp
Tool Number 12
Units = inch(mm) *Optional accessory **30 min. rating
