Mighty Viper VT 25B(L) Series Horizontal Turning Machines
Have one to sell?
ConditionNew
New

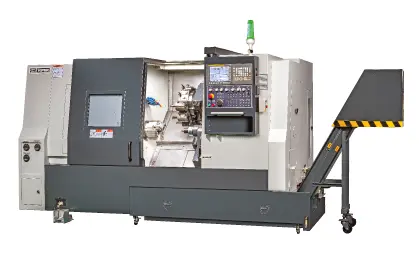

The Viper VT CNC Lathe is a high precision turning center.
Choice of turret: static block tool or live BMT-65.
MACHINE SPECIFICATIONS
Swing Over Bed 18 (460)
Max. Turning Diameter 11.42 (290)
Max. Turning Length 22 (550) / 41 (1050)
X Travel 9.25 (235)
Z Travel 21.65 (550)
Spindle Nose A2-8
Spindle Thru Hole 3.4 (86)
Bar Capacity 3.0 (76)
Max. Boring Bar Diameter 2 (50)
Spindle Motor** (hp) 35
Spindle Speed Range (rpm) 3500
Turret Tool Number 12
Units = inch (mm) | *Optional accessory **30 min. rating
