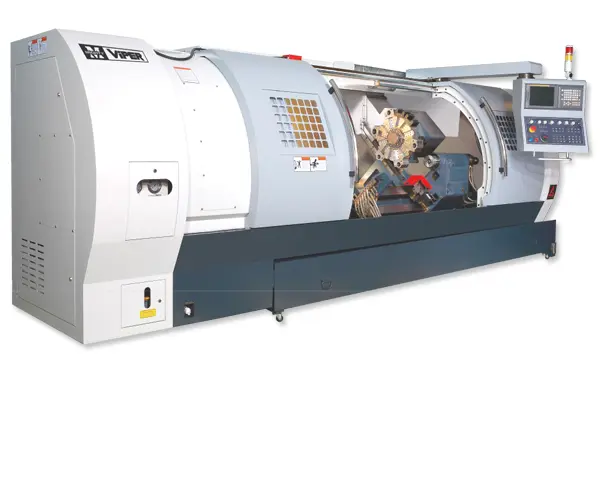

28~33 VT-Series performs extraordinary metal removal and provides excellent surface finishes. Live turret and a programmable sub-spindle.
Machine Model 28 30 33
Swing Over Bed 26.8 (680)
Turning Diameter Max. 18.9 (480)
Turning Length Max. 21.7~80.7 (550 ~ 2050)
X-Travel 9.4+1.18 (240+30)
Z-Travel 23.2~82.3 (590~2090)
Thru Bar Capacity 3.03(77) 3.5(90) 4.5 (115)
Boring Bar Diameter Max. 1.6 / 3.0 (40/76)
Spindle Thru Hole 3.4(87) 4.3(110) 5.2(131)
Spindle Nose A2-8 A2-11 A2-11
Spindle Speed Range 3500 3000 2400 rpm
Spindle Motor** 35 / 50* hp
Tool Number 12
Units = inch(mm) *Optional accessory **30 min. rating
