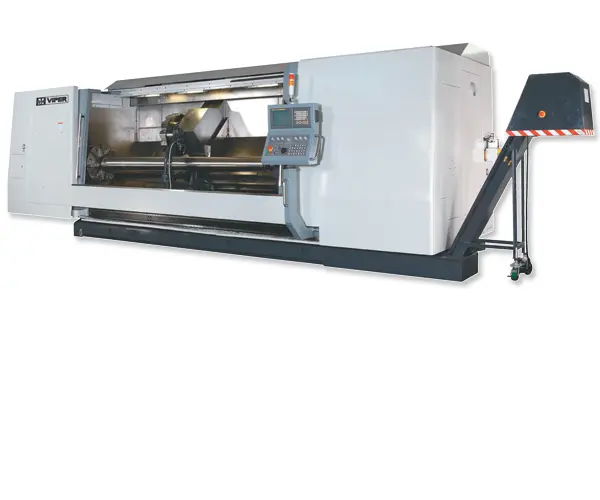

38~70A VT-Series accommodates long and heavy workpieces; provides deep hole boring capacity with a large diameter.
Machine Model 38 ~50 70A
Swing Over Bed 39 (1000) 45 (1150)
Turning Diameter Max. 35 (880) 39 (990)
Turning Length Max. 38~156 (960~3960)
X-Travel 17+1.18 (430+30) 21+1.18 (540+30)
Z-Travel 39~157 (1000~4000)
Thru Bar Capacity 4.5 / 6.3 (115/160)
Boring Bar Dia. Max. 2.5 / 4.0 (60/100)
Spindle Thru Hole 5.2~12.0 (131~308) 12.0 (308)
Spindle Nose A2-11~A2-20 A2-20
Spindle Speed Range 300 ~2500 850 rpm
Spindle Motor** 50 / 60*
Tool Number 12
Units = inch(mm) *Optional accessory **30 min. rating
