2003 Okuma Simulturn LU300M-2SC600 3.14 through hole Spego Bar feeder parts catcher

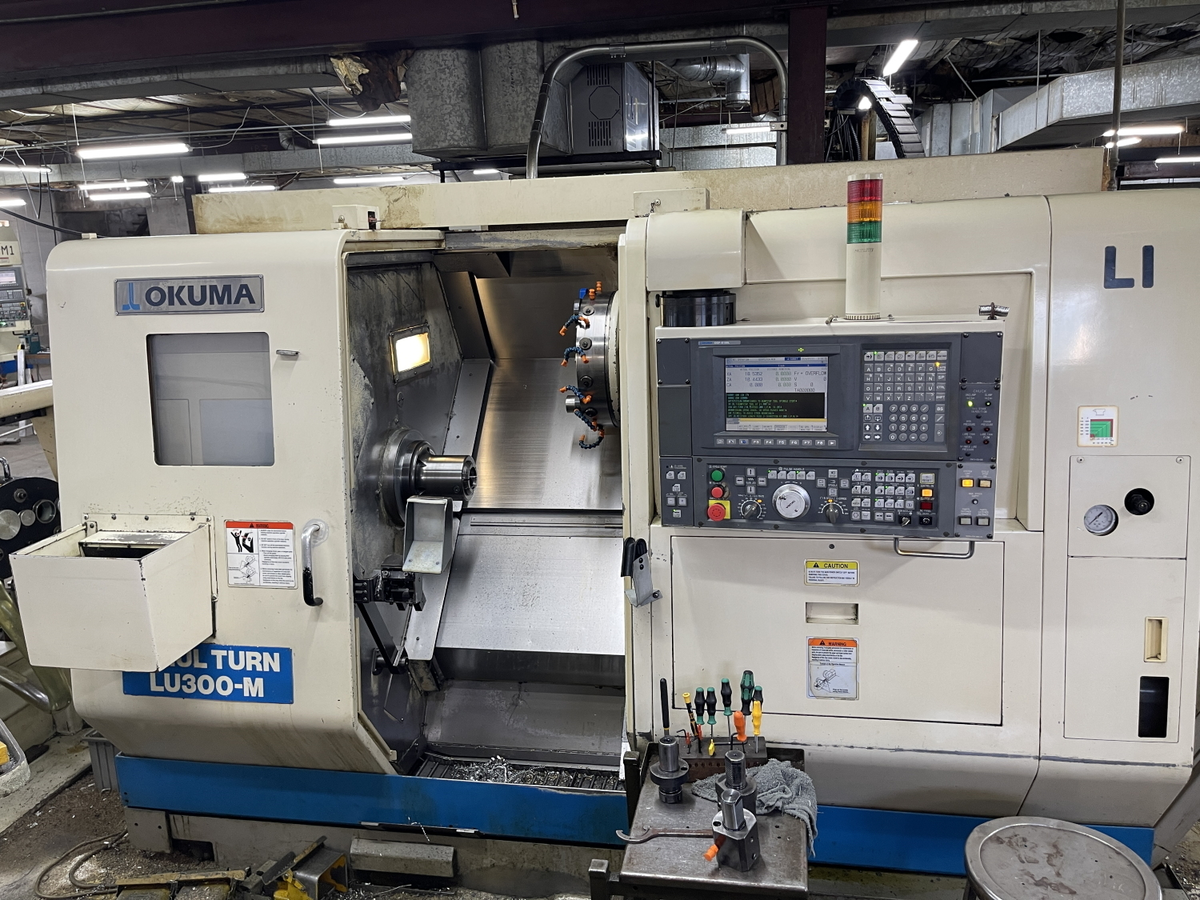

Okuma Simul Turn LU300-M 2SC600 4 Axis Lathe
Spego Turnamic 512-20.5 Bar Feed

Stock#R776
Model#LU 300M2SC600
Control Okuma OSP-E1000L
Serial# 105667
Year 2003

No. Of Axis 4

Swing Over Bed 530 (20.87”)
Swing Over Carriage 380 (14.96”)
Swing Over Cross Slide 330 (12.99”)
Distance Between Centers 600 (23.62”)
Max Turning Diameter/Length 370x600 (14.57 x 23.62”)
Spindle Diameter 120 (4.72”)
Spindle Nose Type JIS A2-8
Taper Hole 90 (3.54”)X1/10
Through Spindle Hole 80 (3.14”)
No. of Spindle Speed Range Infinitely Variable x 2 Ranges
Spindle Speed 38-3800 rpm
Carriage Z Axis Travel 640(25.20”) Upper
615(24.21”) Lower

Z Axis Feed Rate 0.001-1,000.0 mm/rev . .00001-39.37ipr
Z Axis Rapid Feed Rate 25,000mm/min (984.25ipm)
Cross Slide X Axis Travel 260(10.24”) Upper
140 ( 5.51”) Lower
X Feed Rate 0.001-1,000.0 mm/rev
.00001-39.37ipr
X Rapid Feed Rate 20,000mm/min (787.25ipm)
Turret Type V12 Upper V8 Lower
No.Tools 20
Tool size OD Turning 25 x 25 (1”)
Tool Size ID Turning 40 (1 ½”)
Rotary Tool Spindle Speed 45-4,500 rpm
C Axis Control Angle 360 (0.001”)
C Axis Rapid Traverse 200 Ipm
Tail Stock Spindle Dia. 90(3.54”) Taper MT 5
Tails Stock Spindle Travel 120 (4.72”)
Spindle Hp 20/30-20 Min/Cont.
Carriage Feed Z Axis Hp 5.3 Upper & Lower
Cross Slide X Axis HP 4 Upper 2.7 Lower
Hydraulic Pump Hp 3
Machine Height 79.13
Floor Space 116” x 80”
Weight 14,960Lbs

Equipped With

Spego 512-20.5 Bar Feed
5 bar 1-1/8, 1-1/2, 1-3/4, 2-1/8 & 2-9/16” x 18’ OA
10” 3 Jaw chuck
Enomoto Chip Conveyor
Coolant Tank & Pump
Parts Catcher
Assorted Tooling Live Tooling, Collets, Live Center
RS-232-C Port
Foot Pedals (3)
Books & Diagrams
Wired 240/3/60
