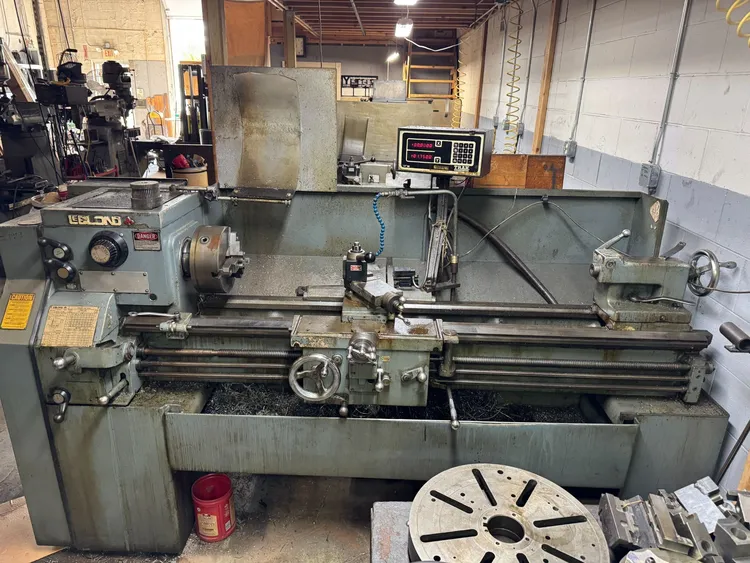

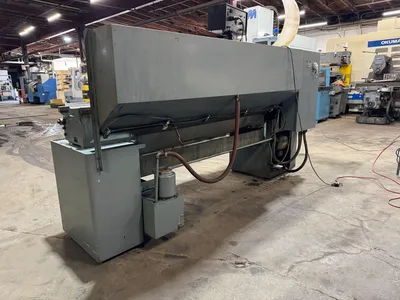

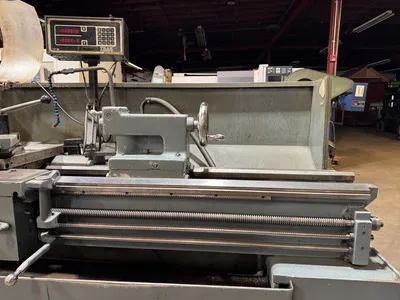

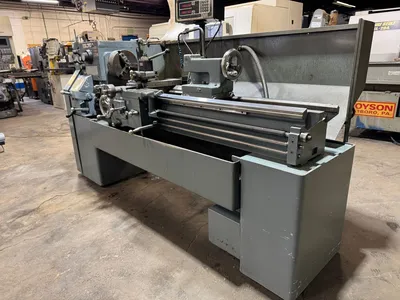

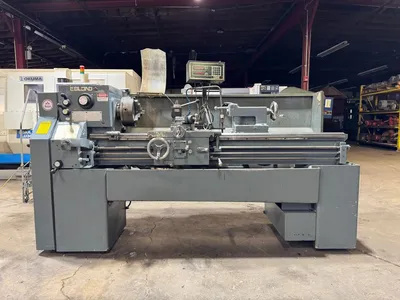

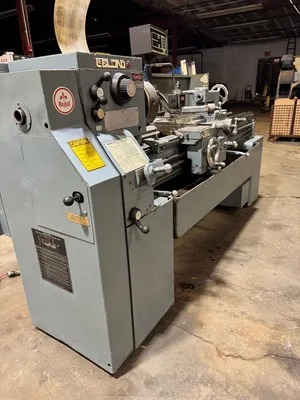

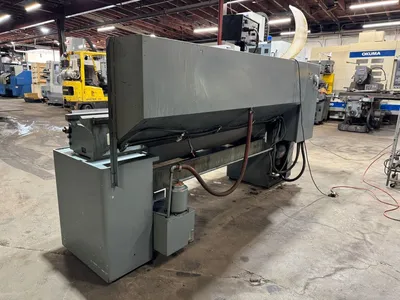

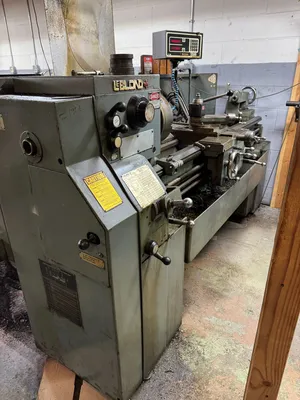

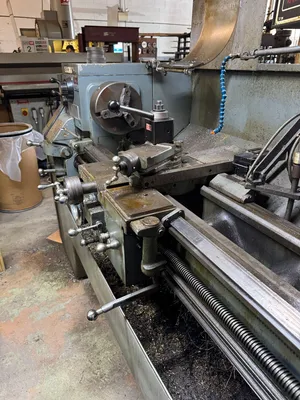

Leblond Regal Servo Shift 15” x 54”

Leblond Regal Servo Shift 15” x 54”

Stock RPWI845
Model Servo Shift

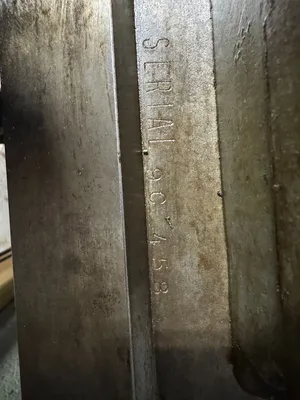

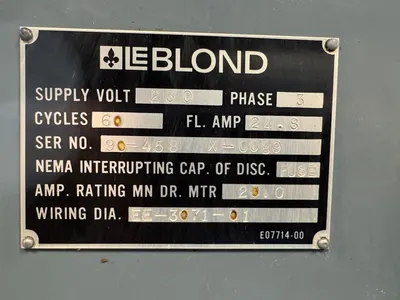

Serial #9C-458

General Specifications
• Swing over Bed: 15-1/2"
• Distance Between Centers: 54"
• Swing over Cross Slide: 9-1/2"
Spindle & Drive
• Spindle Speeds: 45 - 1,800 RPM (12 speeds)
• Hole Thru Spindle: 2-17/64"
• Spindle Nose: D1-6
• Motor Power: 5 HP
Features & Controls

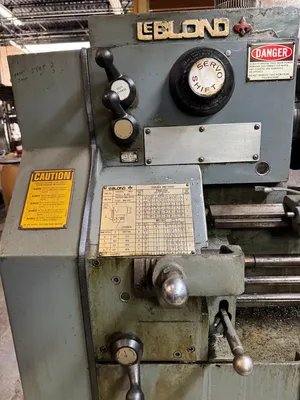

• Servo-Shift: Allows for electronic shifting of spindle speeds.

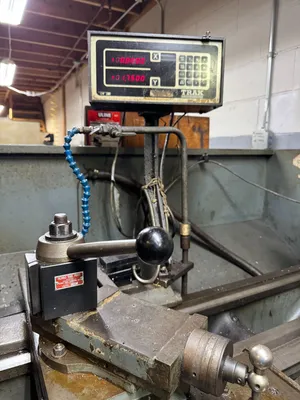

• Digital Readout (DRO):
• Threading: Capable of both Inch (2-112 TPI) and Metric (0.25-14 mm) threads.
Tailstock
• Quill Travel: 5"
• Quill Taper: #4 MT (Morse Taper)

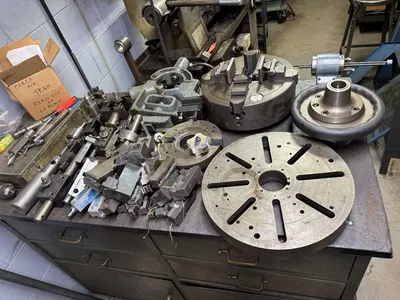

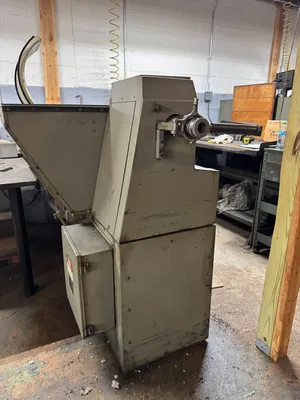

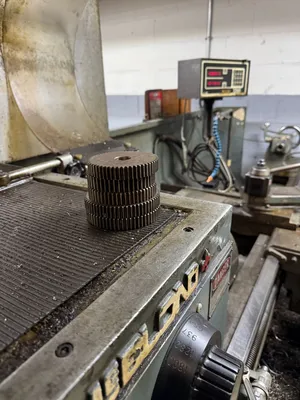

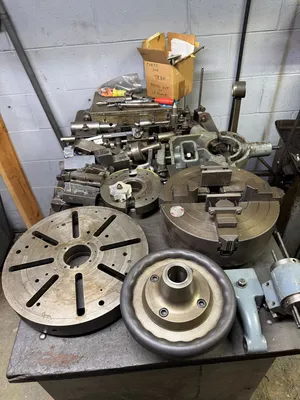

• Tooling Package as Pictured
Dimensions 100” x 42” x 53” H
Weight 4,500 lb
