Harig Super 612 Surface Grinder Walker Ceramax Fine Pole Perm. Mag. Chuck

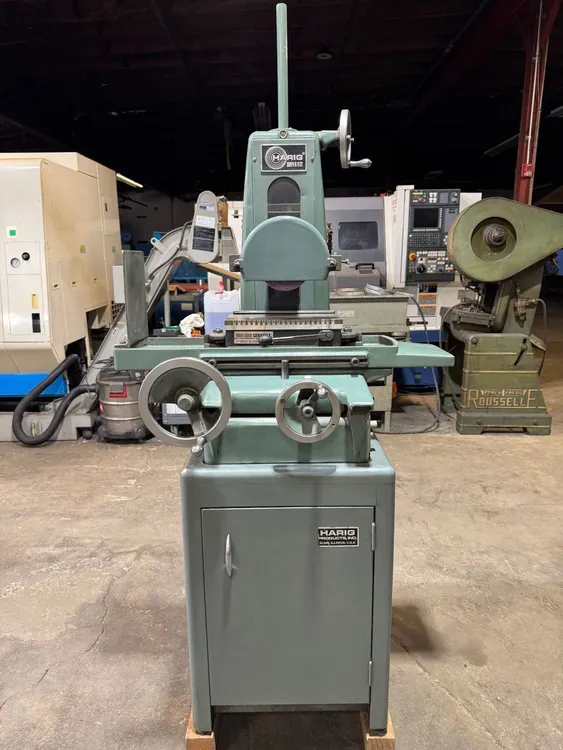

Harig Super 612 Surface Grinder
Walker Ceramax Fine Pole Perm. Mag. Chuck

Stock#RPWI842
Model# 612
Serial# 10301
Year 1978
General specifications

Table size: 6 x 12 inches
Longitudinal travel: 12 3/4 inches
Crossfeed travel: 6 3/4 inches
Maximum vertical working height: 12 to 12 1/2 inches (depending on max Wheel Size)
Grinding method: Reciprocating surface grinding
Ways: roller bearing,
Motor horsepower: 1 HP. 208-220/440/3/60
Spindle speed: 3450 RPM
Standard grinding wheel size: 7" x 1/2" x 1 1/4" hole
Maximum grinding wheel diameter: 8 inches
Manual controls: Hand wheels for crossfeed and vertical feed
Magnetic chuck: 6" x 12" permanent magnetic, Walker Ceramax chuck.
Dimensions 36” x 38” weight 700lb

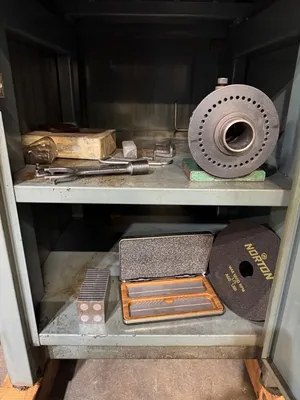

Original Manual, 1 Owner machine
