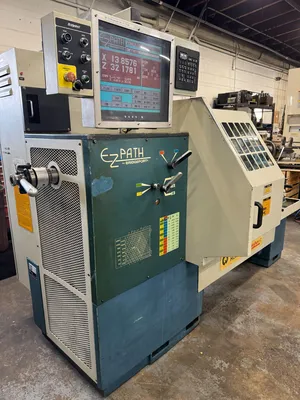

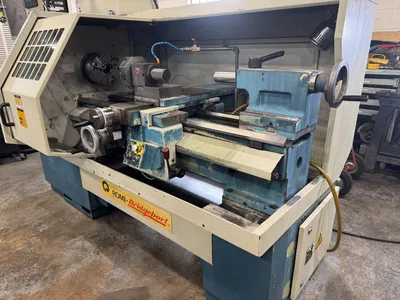

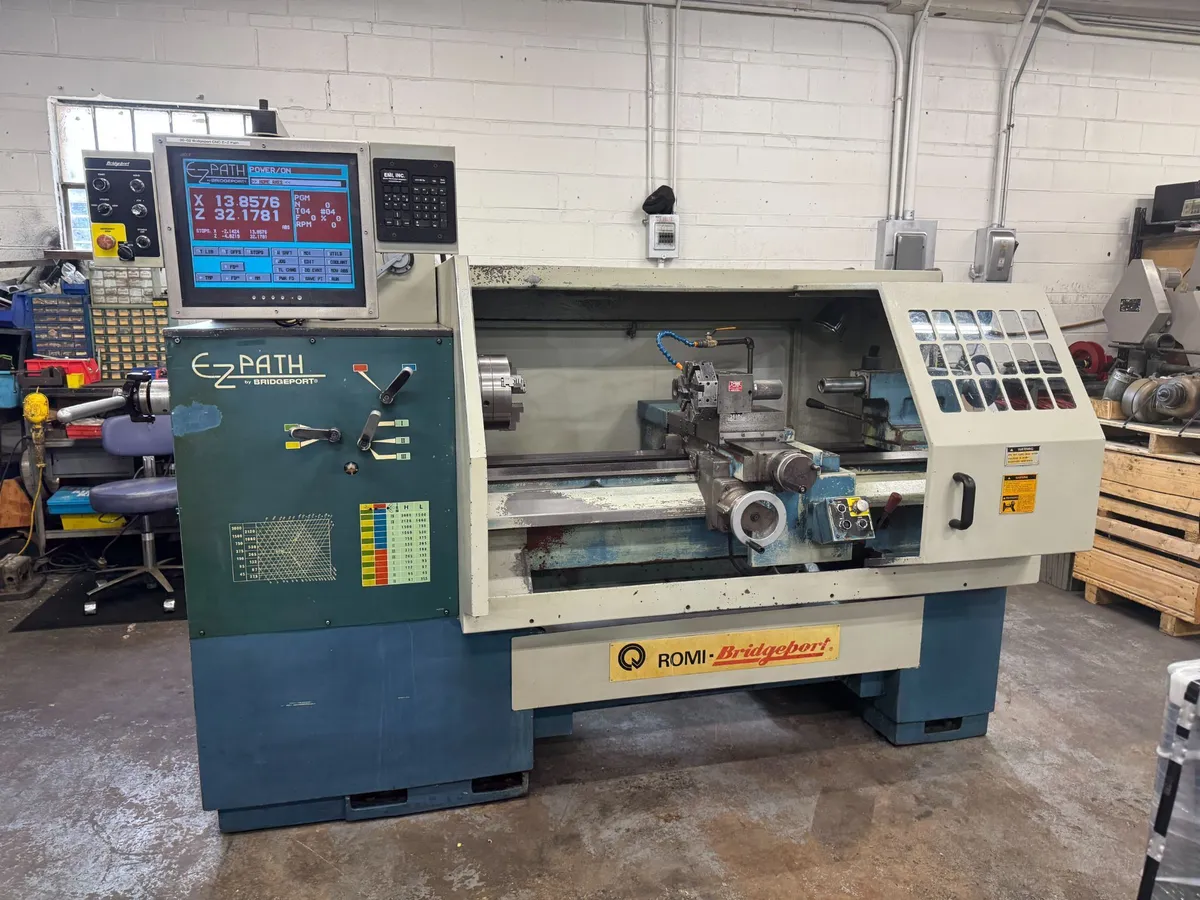

Bridgeport Romi EZ Path

16.5” x 40” Romi Bridgeport EZ Path Lathe

Stock#RC852
Model EZ Path
S.N.022-078107-325
Year 1994

Swing 16.5
Centers 40”
Height of center 8”
Swing over cross Slide 8”
Bed Width 12”
Bed height 13 5/32”
Spindle nose ASA A2-5”
Hole Threw Spindle 2”
Spindle Speeds
High 67 – 3000 (12) Rpm
low 37.5 -1500 (12) Rpm
Longitudinal Rapid 250 Inch per Min
Cross Rapid 250 Inch per Min
Quill Travel 6.3”
Quill Diameter 2”
Quill Taper hole MT4

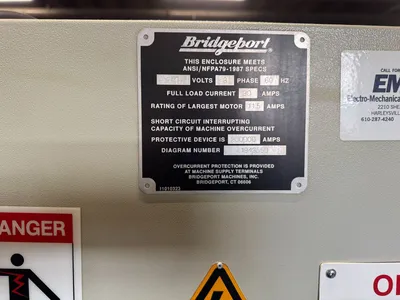

Main Spindle Motor 8HP 240/3/60

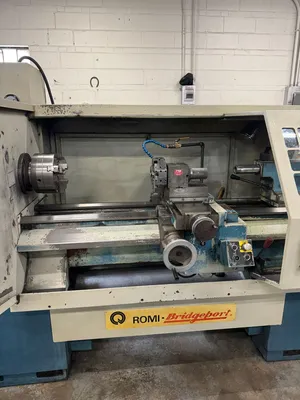

8” 3 jaw Chuck
Collet Closer
Dorian VIT8-75 8 position turret

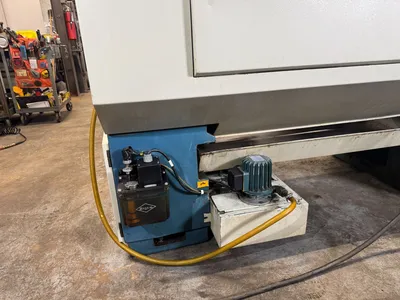

Coolant Tray & Pump
Chip Pan
Light
24 Pin

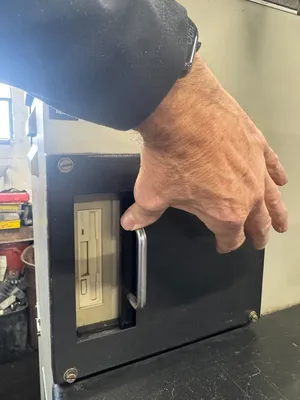

Floppy

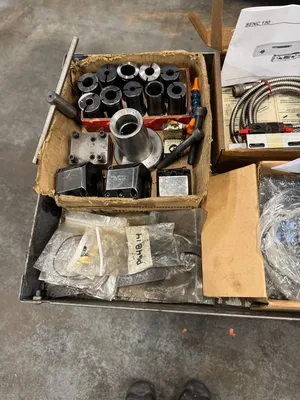

Assorted parts & Tooling
Work Light
Books

Dimensions 96” x54” x 71”
Weight 4,000lbs
