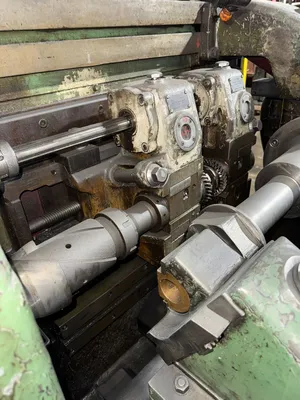

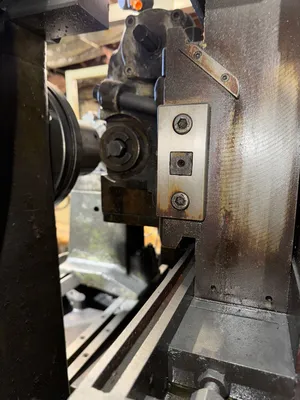

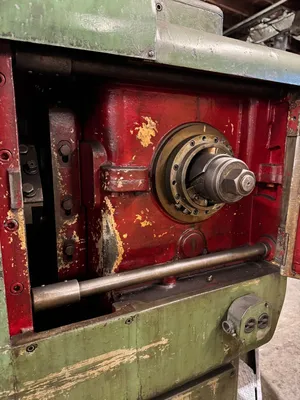

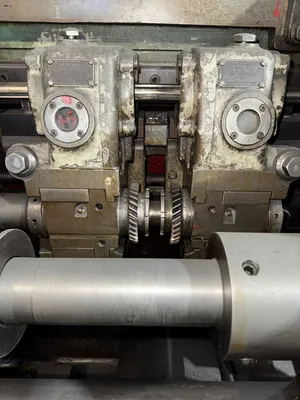

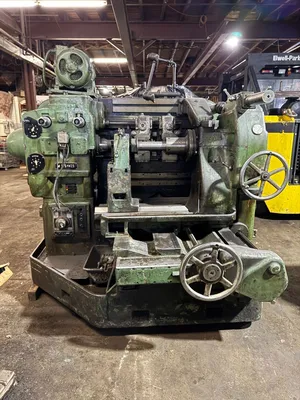

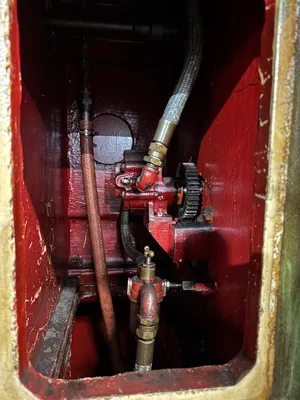

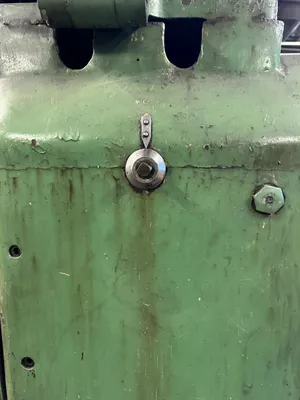

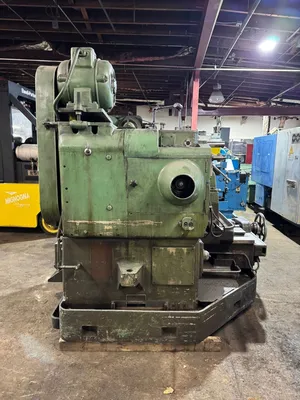

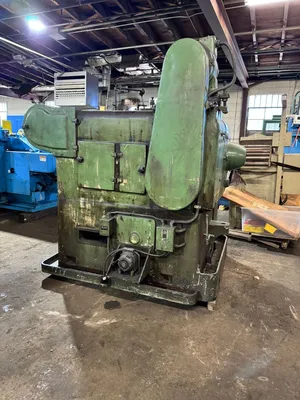

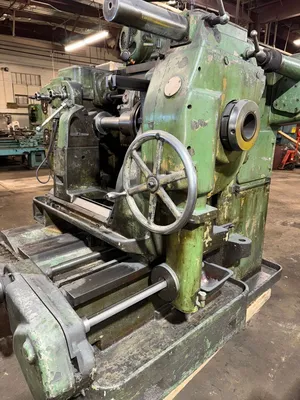

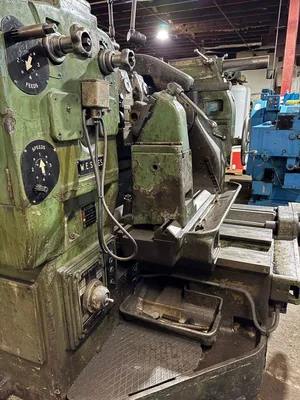

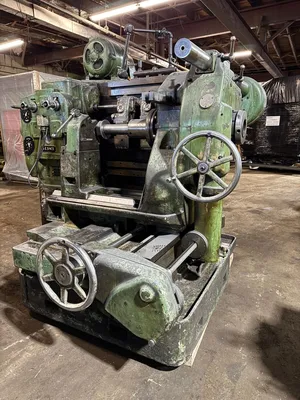

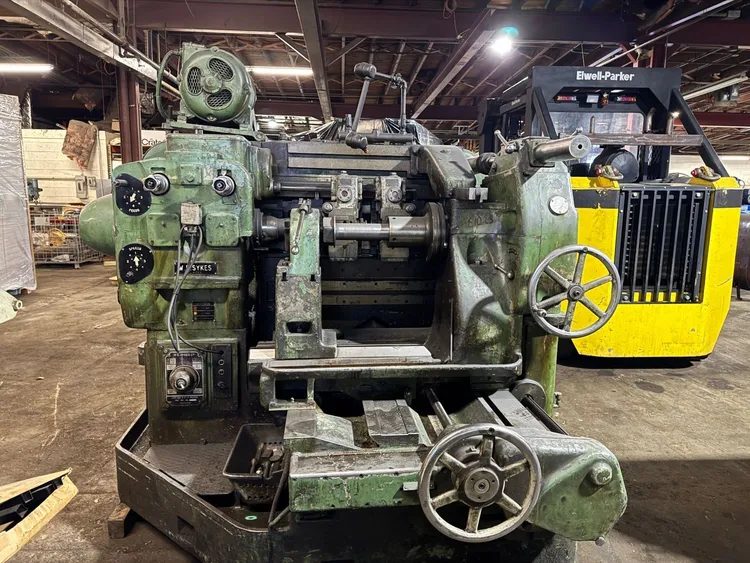

SYKES 3C Herringbone Double Helical Gear Generator

Specifications:

Cutting Speeds 24
Stroke 34-314
Feeds 4
Feed Range with 4” Cutter 007-004 (.18-.26mm)
Standard Cutter diameter 4” PCD
Standard cutter bore 2 9/16”
Main Motor 5 HP

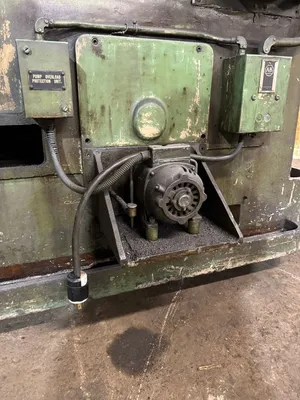

Coolant Pump Motor ½ HP
Coolant Pump Output per min. 7.5gallons/34 litres
Coolant Sump capacity 15 gallons/68 litres
Weight 18,760lbs/8510 Kg
Floor Space 94” x 98” x 93”H

Capacity:
Pitch Range 36-2 ½” DP(.7-10.2 MOD.)
Helix Angle Range 45 degrees
Work Spindle Bore 3.82” (97mm)
Tailstock to face of work Max. 28.5” (724mm)

EXTERNAL GEARS
Blank Diameter Max. 40” (1016mm)
Face width Double Helical 0-10” (0254mm)
Face width Spur or Single Helical 0-7.5” (0-190.5)

INTERNAL GEARS :
Blank diameter Max 40” 1016mm
Face width 0-6” (0-152.4)
PCD Max. 40”-(2 x rim thickness)
