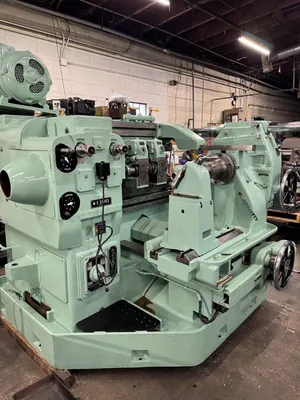

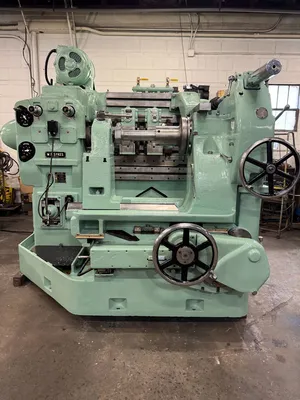

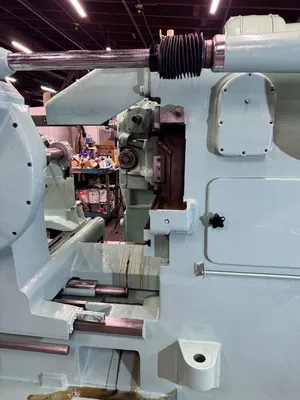

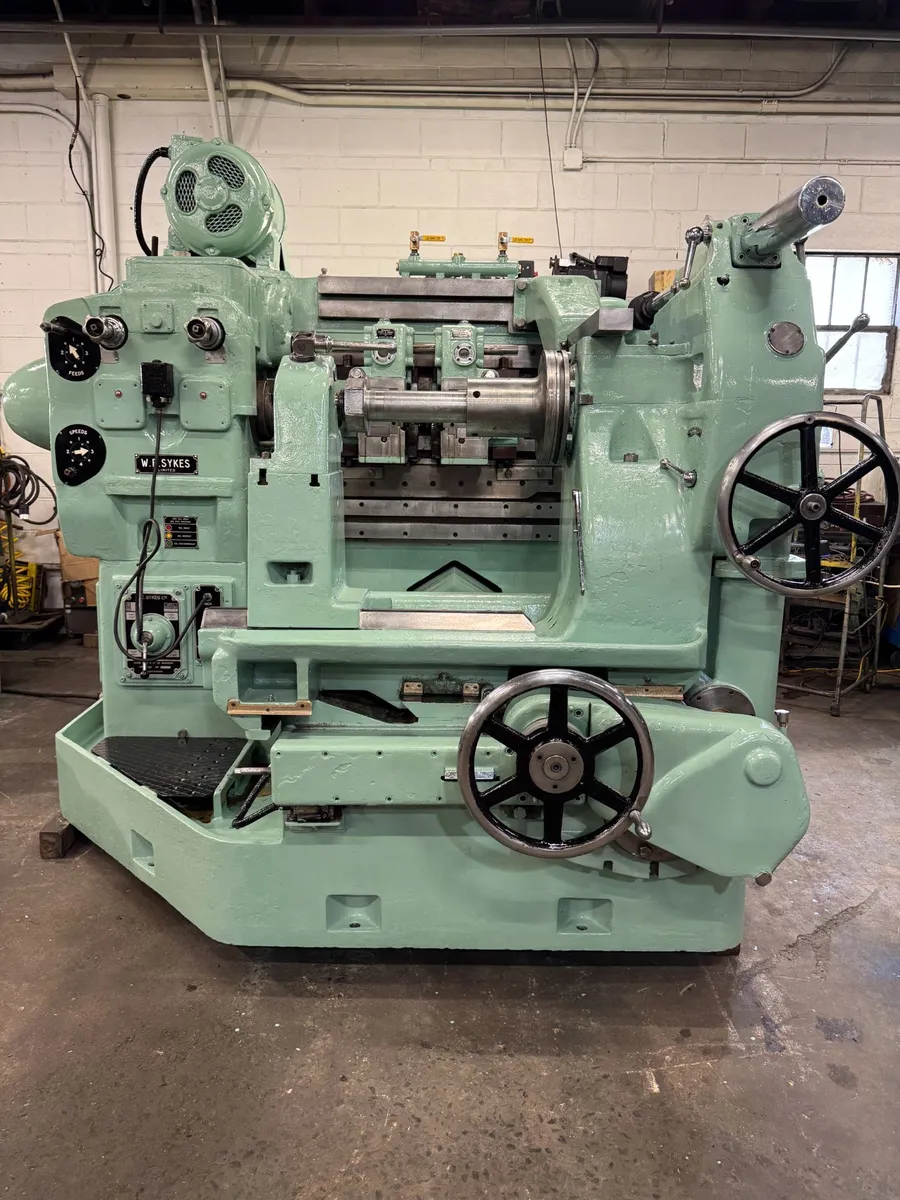

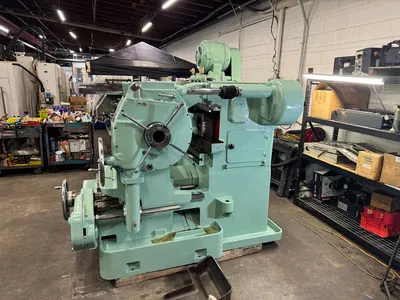

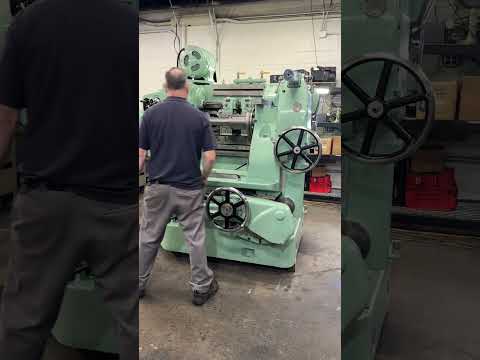

SYKES 3C Herringbone Double Helical Gear Generator
Have one to sell?
ConditionUsed
1 available
Herringbone Double Helical Gear Generator
SYKES 3C Herringbone Double Helical Gear Generator
Stock#R853
Model#3C
Serial#2993 10
Specifications:
Cutting Speeds 24
Stroke 34-314
Feeds 4
Feed Range with 4” Cutter 007-004 (.18-.26mm)

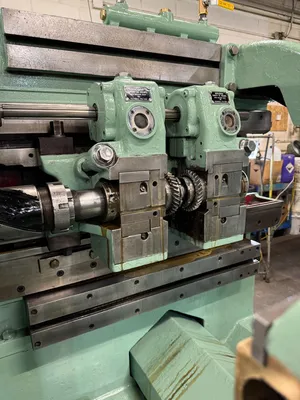

Standard Cutter diameter 4” PCD
Standard cutter bore 2 9/16”
Main Motor 5 HP

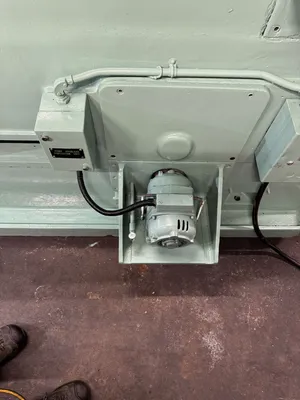

Coolant Pump Motor ½ HP
Coolant Pump Output per min. 7.5gallons/34 litres
Coolant Sump capacity 15 gallons/68 litres
Weight 18,760lbs/8510 Kg
Floor Space 94” x 98” x 93”H
Capacity:
Pitch Range 36-2 ½” DP(.7-10.2 MOD.)
Helix Angle Range 45 degrees
Work Spindle Bore 3.82” (97mm)
Tailstock to face of work Max. 28.5” (724mm)
EXTERNAL GEARS
Blank Diameter Max. 40” (1016mm)
Face width Double Helical 0-10” (0254mm)
Face width Spur or Single Helical 0-7.5” (0-190.5)
INTERNAL GEARS :
Blank diameter Max 40” 1016mm
Face width 0-6” (0-152.4)
PCD Max. 40”-(2 x rim thickness)
STANDARD SPECIFICATION

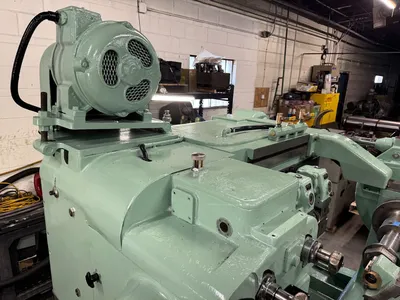

Two speed main drive motor, adjustable motor mounting, multiple
Vee belt drive, guard and change pulleys.
Coolant pump motor and geared coolant pump; complete with all

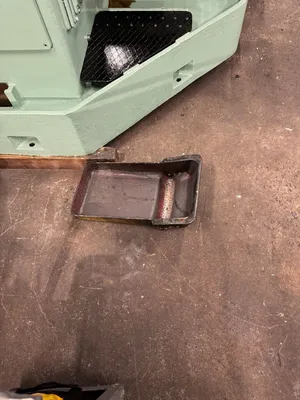

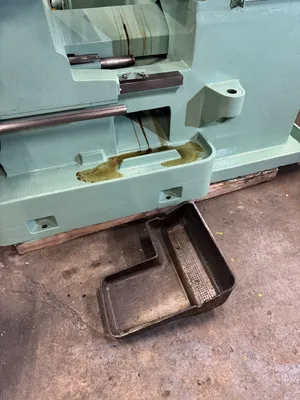

necessary coolant piping, valves, filters and chip tray. Electrical

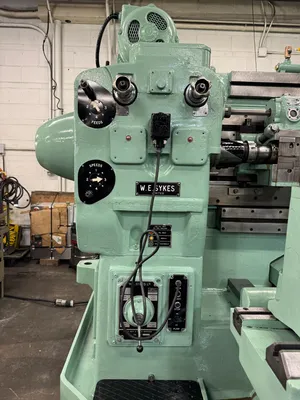

control gear, limit switches and push button station incorporating
hand-held electrical inching button.
Four-position selector controlled gear boxes for speeds and feeds;
together with an additional fast spindle speed for truing the work.
Automatic infeed mechanism for one) two, three or four cuts with
automatic saddle retraction.

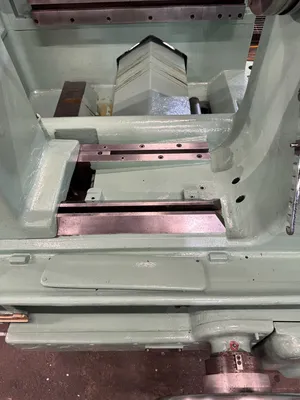

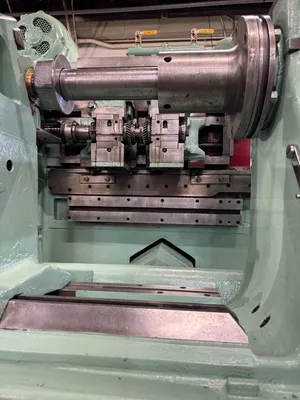

Work arbor support, adjustable along the saddle vee-ways, and
complete with rack operated and clamped sub-slide for the work
centre or bush,
work spindle with Auto-Manual infeed control lever and independent
hand rotation.

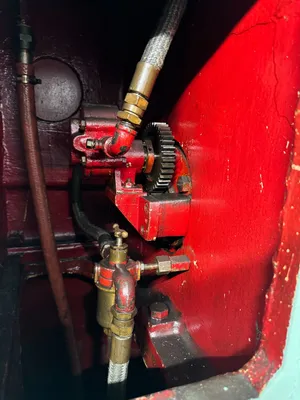

Geared lubrication pump; oil sump and filters ; lubrication piping
and fittings.
