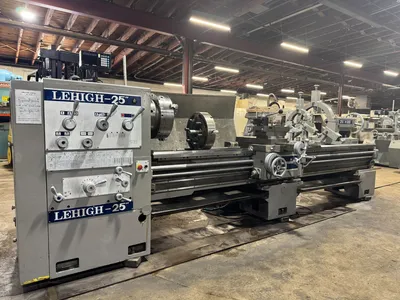

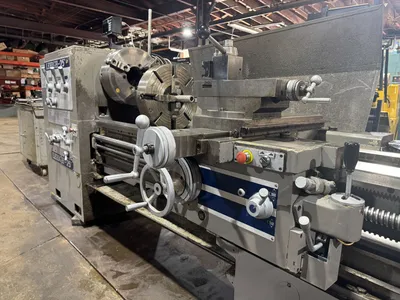

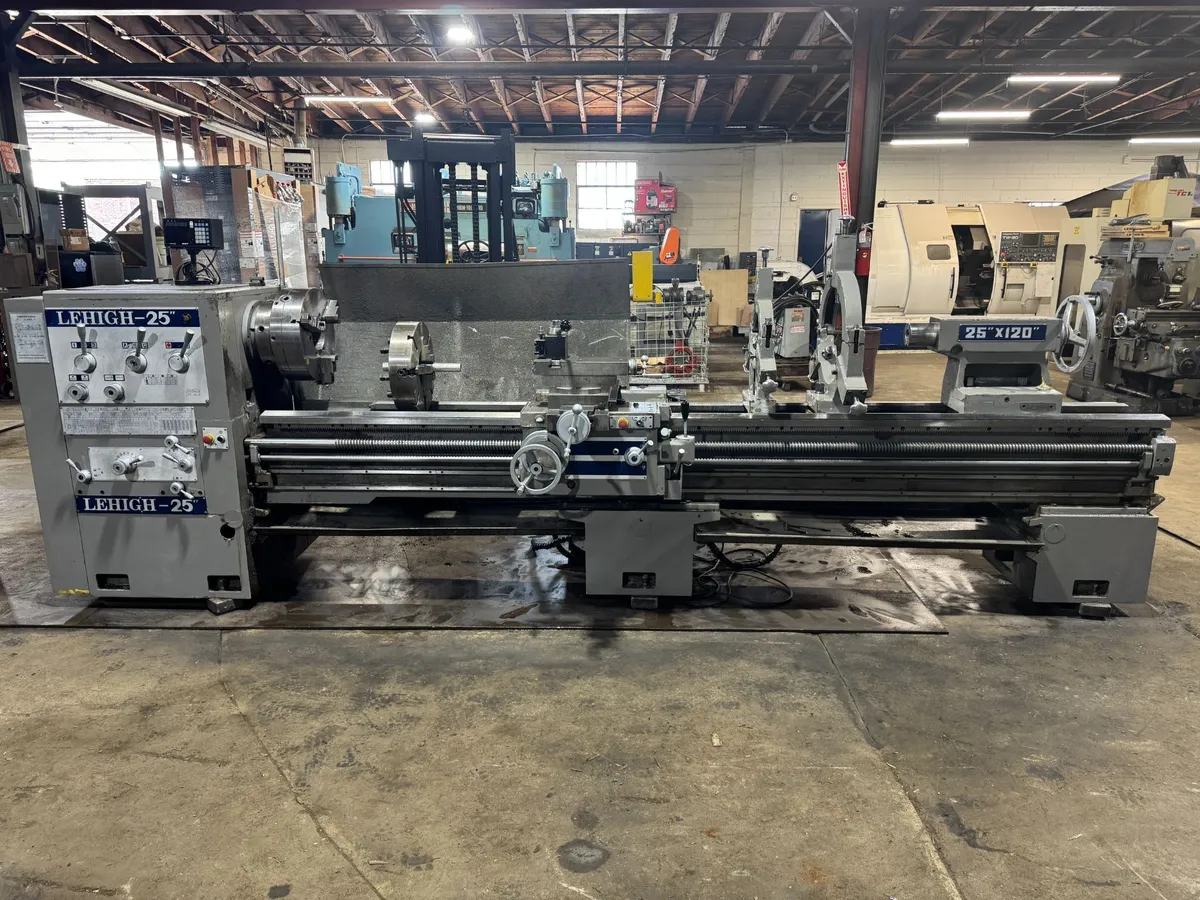

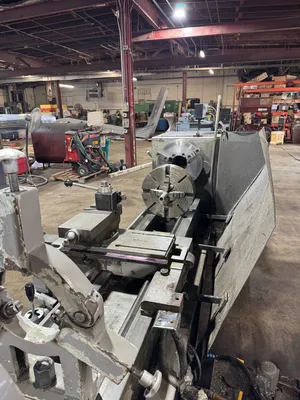

Lehigh 25” x 120” Gap Bed Engine Lathe 4.75” Bore

Lehigh 25” x 120” Gap Bed Engine Lathe
4.75” Bore, Tooling Package

Stock R861
Model 25”x120”
Serial# 960830

CAPACITY
Swing over bed: 26”
Swing over cross slide: 12 inches
Swing in gap: 32 inches
Distance between centers: 120 inches
Bed width: 16.25 inches

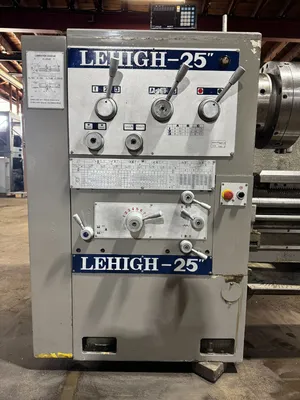

HEADSTOCK
Spindle bore: 4 ¾” inches
Spindle nose: D1-8
Spindle speed range: 12 to 1000 RPM
Number of spindle speeds: 18 steps
Main motor power: 10 HP
Lubrication: Oil-bath system
FEEDS AND THREADING
Inch thread range: 2 to 24 TPI (30 kinds)
Metric thread range: 1 to 192 mm (57 kinds)
Modular thread range 0.25-48 (40)
Pitch Thread range 1-96DP (37)
Longitudinal feed range: 0.0030 to 0.0629 IPR (36)
Cross feed range: 0.001 to 0.0206 IPR (36)

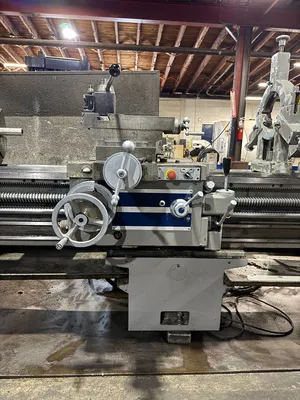

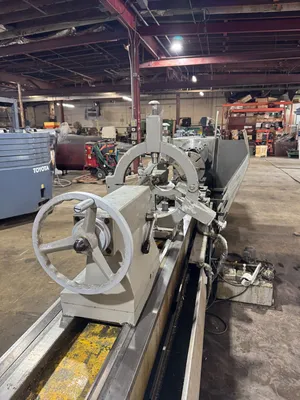

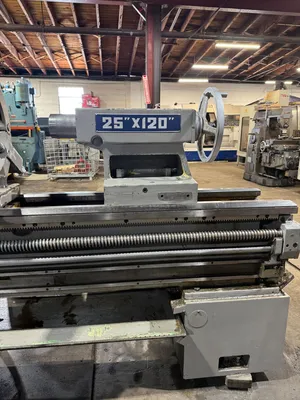

TAILSTOCK AND CARRIAGE
Tailstock quill travel: 10 ¾” inches
Tailstock taper: MT#5
Traverse type: 4-way rapid traverse motor

Equipped
16” 4 Jaw Chuck

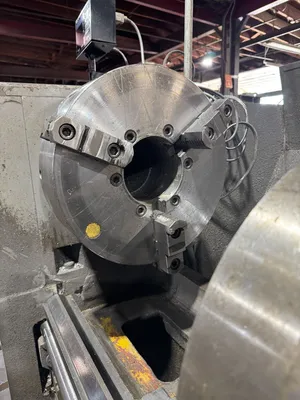

16” 3 Jaw Chuck

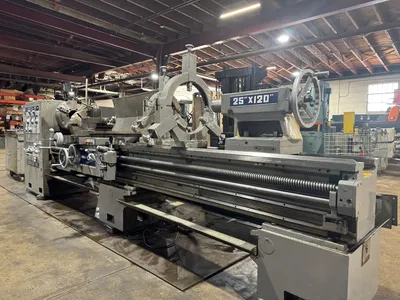

16” Roller Steady rest
8’ roller steady rest
coolant tank And Pump
Single Axis DRO
(2)4 Post Alloris style tooling set

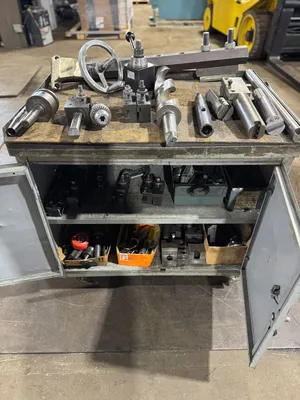

Rolling cart with assorted Tooling
PHYSICAL DIMENSIONS
Overall length: 182 inches
Overall width: 46 inches
Overall height: 55 inches
Shipping weight: 8,800 lbs
