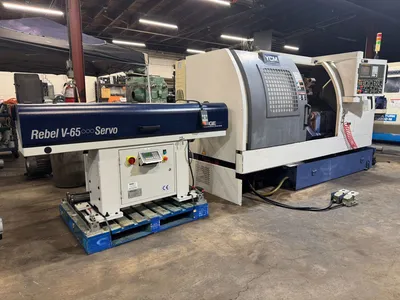

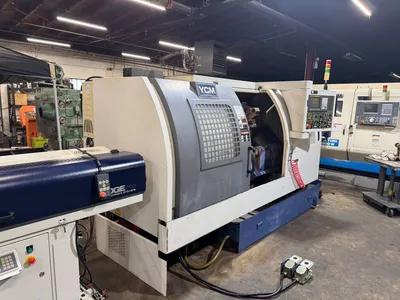

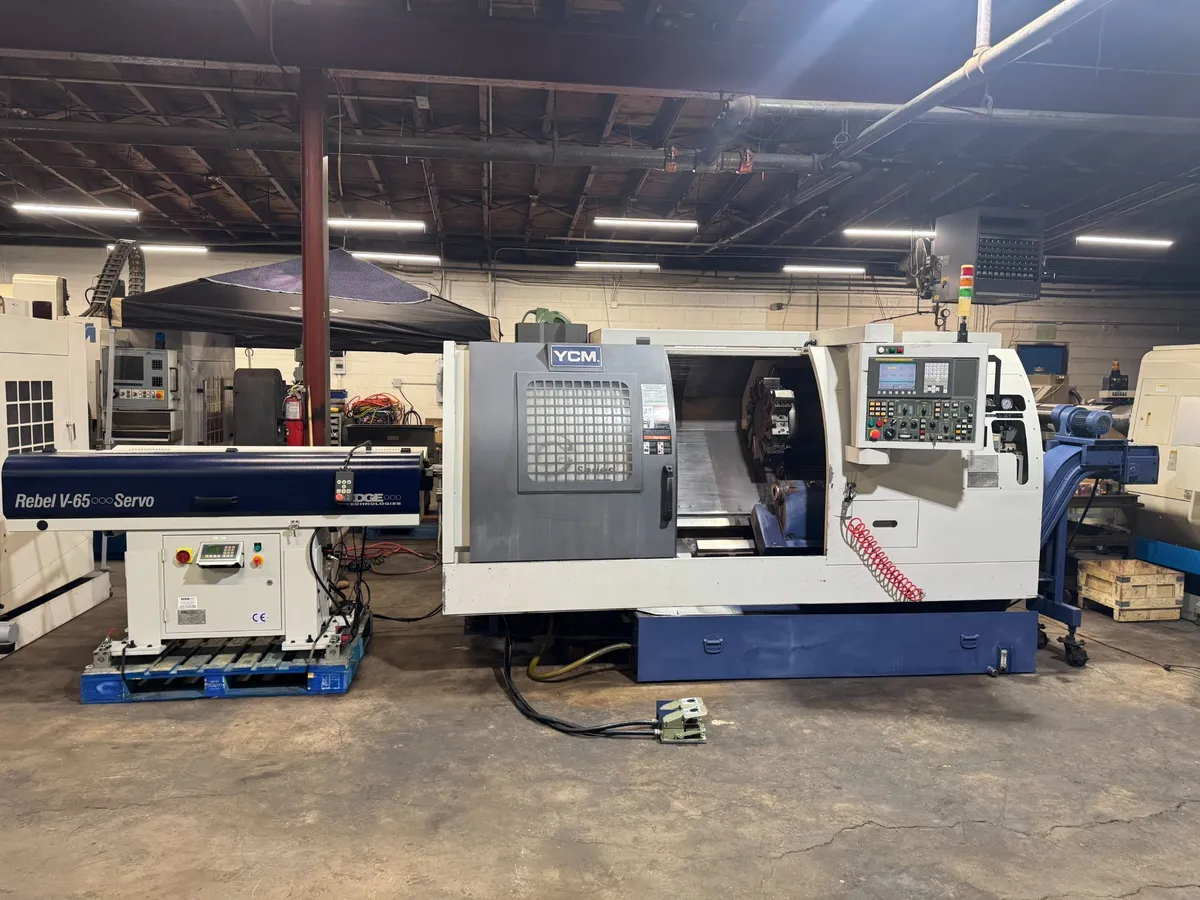

2006 YCM SUPERMAX TC-26, 19.68" x 25.55"cc, Rebel V65 Bar feed

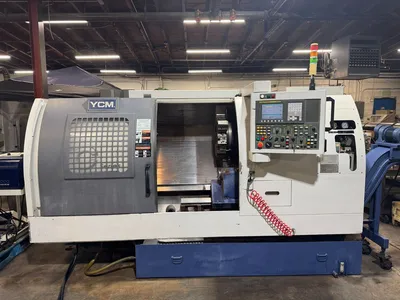

YCM TC-26 Turning Center Fanuc Oi-TC Control
Rebel V65 Barfeed

Stock# R861
Model#TC-26
Serial#0268
Date MFG 11.2006

SWING OVER BED .................... 19.68"
SWING OVER CARRIAGE ............... 13.77"
MAX. TURNING DIA. ................. 17.7"
BAR WORK CAPACITY ................. 3.07"
MAX. TURNING LENGTH ............... 25.59"
DISTANCE BETWEEN CENTERS .......... 27.55"

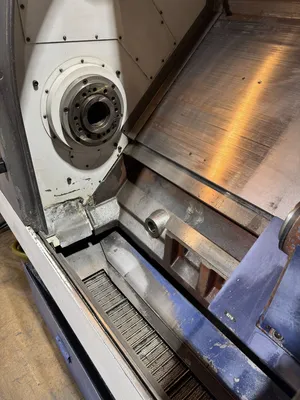

CHUCK DIAMETER .................... 10"
SPINDLE NOSE ...................... A2-8
SPINDLE THROUGH HOLE .............. 3.46"
SPINDLE SPEED ..................... 4,000 RPM
X-AXIS TRAVEL ..................... 9.84"
Z-AXIS TRAVEL ..................... 27.55"
SPINDLE MOTOR ..................... 20/14.7HP
TURRET POSITIONS .................. 12
SHANK HEIGHT FOR SQUARE TOOL ...... 1"
SHANK DIAMETER FOR BORING ......... 1-1/2"
TAILSTOCK QUILL DIAMETER .......... 3.93"
TAILSTOCK TAPER ................... MT NO.5
TAILSTOCK QUILL STROKE ............ 4.72"
TAILSTOCK STROKE .................. 20.86"
APPROX. MACHINE WEIGHT ............ 9,800 LBS

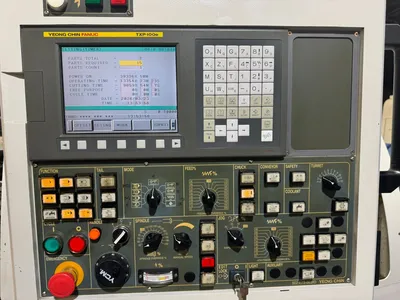

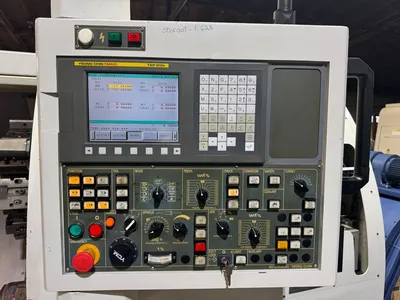

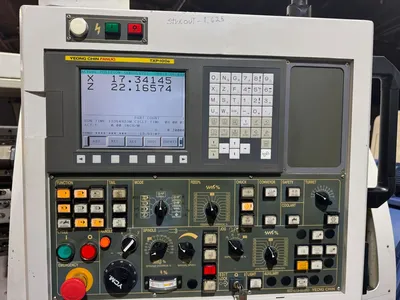

Fanuc Oi-TC Control

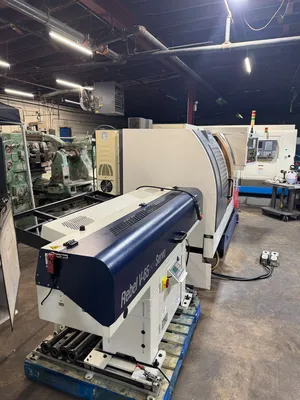

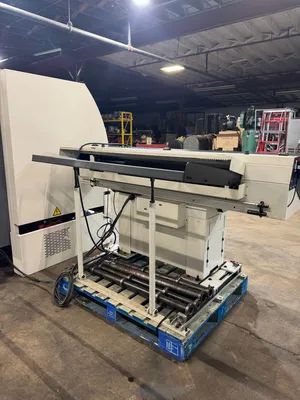

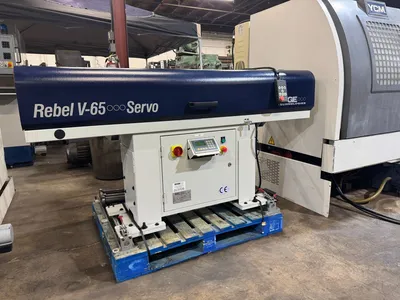

Rebel V65 Barfeed, 2019
Tail Stock
Chip Pan

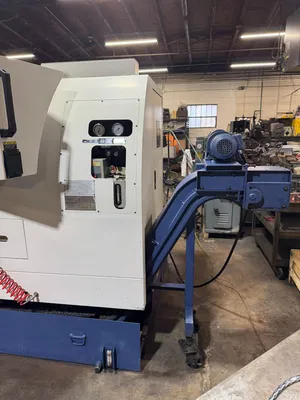

Chip Conveyor

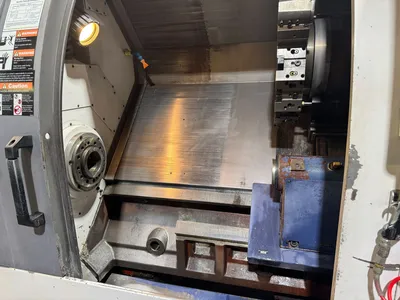

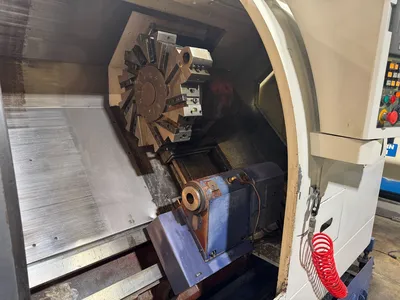

12 Position Turret
Books/Manuals

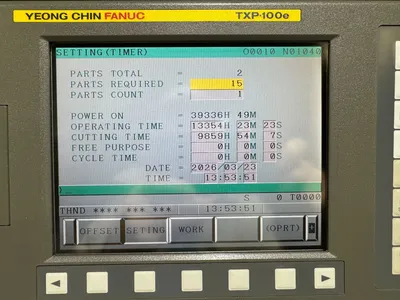

Cut Time 9859
