2011 Haas VF-2SS Vertical Machining Center, Low Hours

2011 HAAS VF-2SS VMC
Spindle Time 3930!!

Stock#R883
Model#VF-2SS
Year 2011

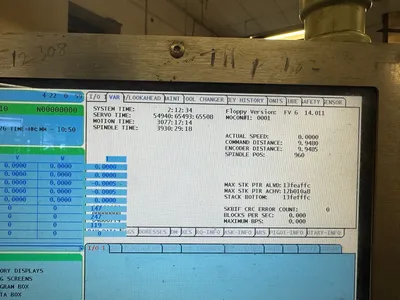

Spindle Time 3,930
Motion Time 3,077

Axis Travels & Work Envelope
• X-Axis Travel: 30.0" (762 mm)
• Y-Axis Travel: 16.0" (406 mm)
• Z-Axis Travel: 20.0" (508 mm)
• Spindle Nose to Table Surface: 4.0" to 24.0" (102 mm to 610 mm)
• Table Size: 36.0" x 14.0" (914 mm x 356 mm)
• Max Weight on Table: 1,500 lbs (680 kg)
• T-Slot Width / Quantity: 0.625" (16 mm) / 3 Slots on 4.92" centers
________________________________________
⚙️ Spindle & Performance Options
• Spindle Speed: 12,000 RPM (Super-Speed Inline Direct-Drive)
• Spindle Motor Max Power: 30 HP (22.4 kW) Vector Drive
• Spindle Taper: CAT-40 (CT-40)
• Max Spindle Torque: 90 ft-lb at 2,000 RPM
• Through-Spindle Coolant (TSC
________________________________________

🔄 Tool Changer & Axis Feedrates
• Tool Capacity: 24+1 Station Side-Mount Twin-Arm ATC
• Tool Exchange Time: 1.8 Seconds (Tool-to-Tool) / 2.4 Seconds (Chip-to-Chip)
• Max Tool Diameter: 3.0" (76 mm) full / 5.0" (127 mm) if adjacent pockets empty
• Max Tool Weight: 12 lbs (5.4 kg)
• Axis Rapids (X / Y / Z): 1,400 inches per minute (35.6 m/min)
• Max Programmed Cutting Feed: 833 inches per minute (21.2 m/min)
• Axis Motor Max Thrust: 3,400 lbs-force (15,124 N)
________________________________________
⚡ Utility & Facility Requirements
• Chip Evacuation: Automated Chip Auger System (Included)

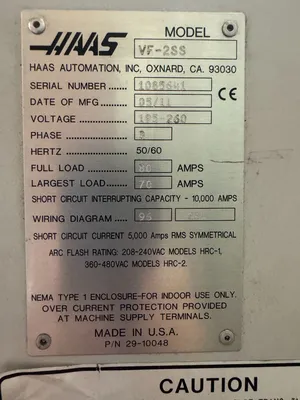

• Input Power Options: 208-240V AC / 3-Phase / 60 Hz
• Full Load Amperage Draw: 70 Amps (at 240V 3-Phase)
• Air Supply Demand: 4 SCFM at 100 PSI constant pressure
• Coolant Reservoir Capacity: 55 Gallons (208 Liters)
________________________________________
📦 Physical Shipping & Operating Dimensions
• Machine Weight: 8,000 lbs (3,629 kg)
• Footprint Width x Depth: 98" x 93" (249 cm x 236 cm) (Enclosure door open requires 125" Depth)
• Max Operating Height: 107" (272 cm
