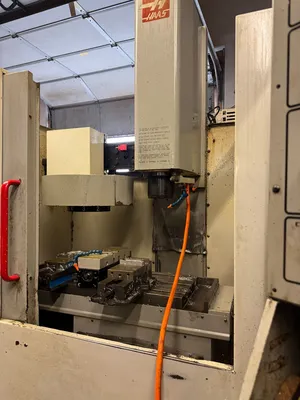

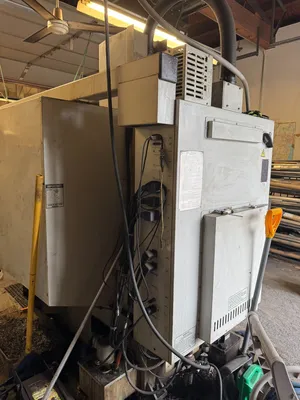

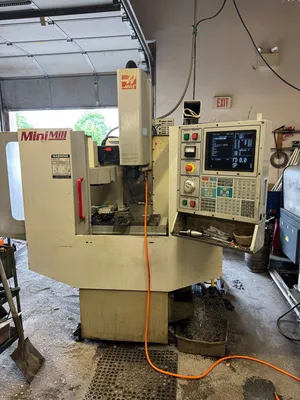

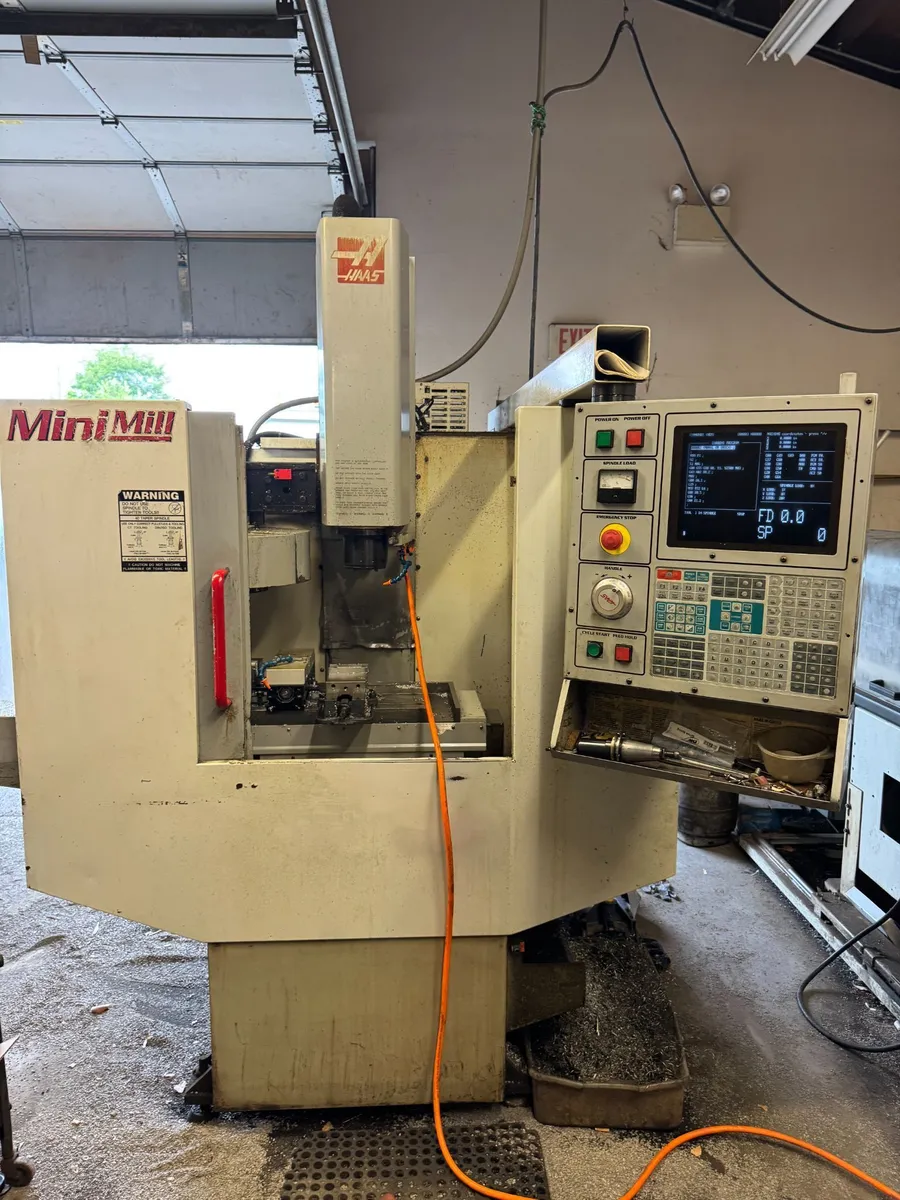

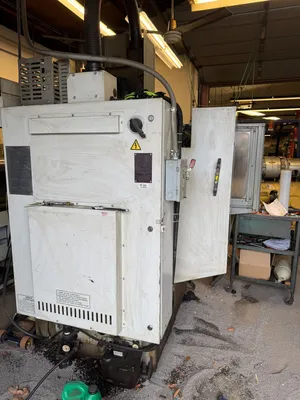

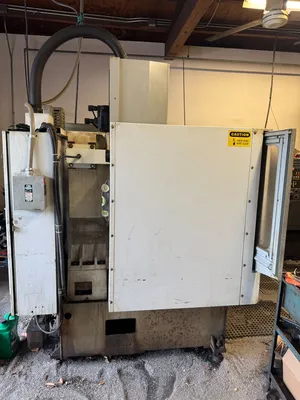

2001 Haas Mini Mill

2001 Haas Mini Mill CNC Vertical Machining Center

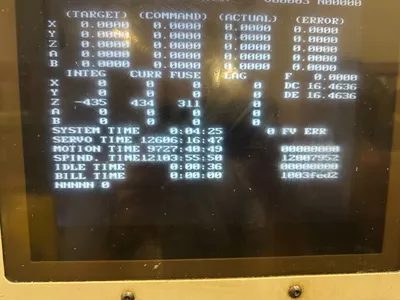

Spindle Time 12,103 Hours

Stock#R884
Model Mini Mill
Year 2001
Spindle Time 12,103
Motion Time 9,727

Axis Travels & Table Capacity
• X-Axis Travel: 16.0" (406 mm)
• Y-Axis Travel: 12.0" (305 mm)
• Z-Axis Travel: 10.0" (254 mm)
• Spindle Nose to Table Surface: 4.0" to 14.0" (102 mm to 356 mm)
• Table Size (Standard): 28.75" x 12.0" (Some configurations featured an extended
• Max Weight on Table: 500 lbs (227 kg)
• T-Slot Width / Quantity: 0.625" (16 mm) / 3 Slots
________________________________________
⚙️ Spindle Specifications
• Spindle Speed: 6,000 RPM
• Drive System: Direct Belt Drive
• Spindle Motor Max Power: 7.5 HP (5.6 kW)
• Spindle Taper: CAT-40 (CT-40)
• Lubrication: Grease Packed / Sealed Long-life Bearings
• Cooling: Air Cooled
________________________________________
🔄 Tool Changer & Feed Rates
• Tool Capacity: 10-Station Carousel ATC
• Max Tool Diameter: 3.5" (89 mm)
• Max Tool Weight: 12 lbs (5.4 kg)
• Tool-to-Tool Exchange Time: 4.2 Seconds
• Axis Rapids (X / Y / Z): 600 inches per minute (15.2 m/min)
• Max Programmed Cutting Feed: 500 inches per minute (12.7 m/min)
• Axis Motor Max Thrust: 2,000 lbs-force (8,896 N)
________________________________________

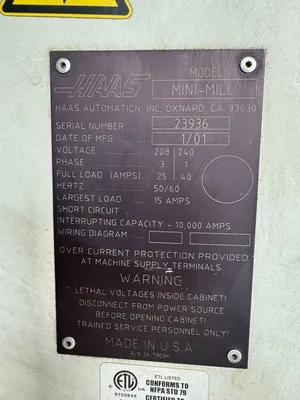

⚡ Utility & Facility Requirements
• Input Power Options: 208-240V AC / 3-Phase / 60 Hz
• Full Load Amperage Draw: 13 Amps (at 480V) to 25 Amps (at 220V)
• Air Supply Demand: 4 SCFM at 100 PSI constant pressure
• Coolant Reservoir Capacity: 40 Gallons (151 Liters)
________________________________________
📦 Physical Shipping & Operating Dimensions
• Machine Weight: 4,000 lbs (1,814 kg)
• Footprint Width x Depth: 90" x 64" (228 cm x 163 cm)
• Max Operating Height: 100" (254 cm)
