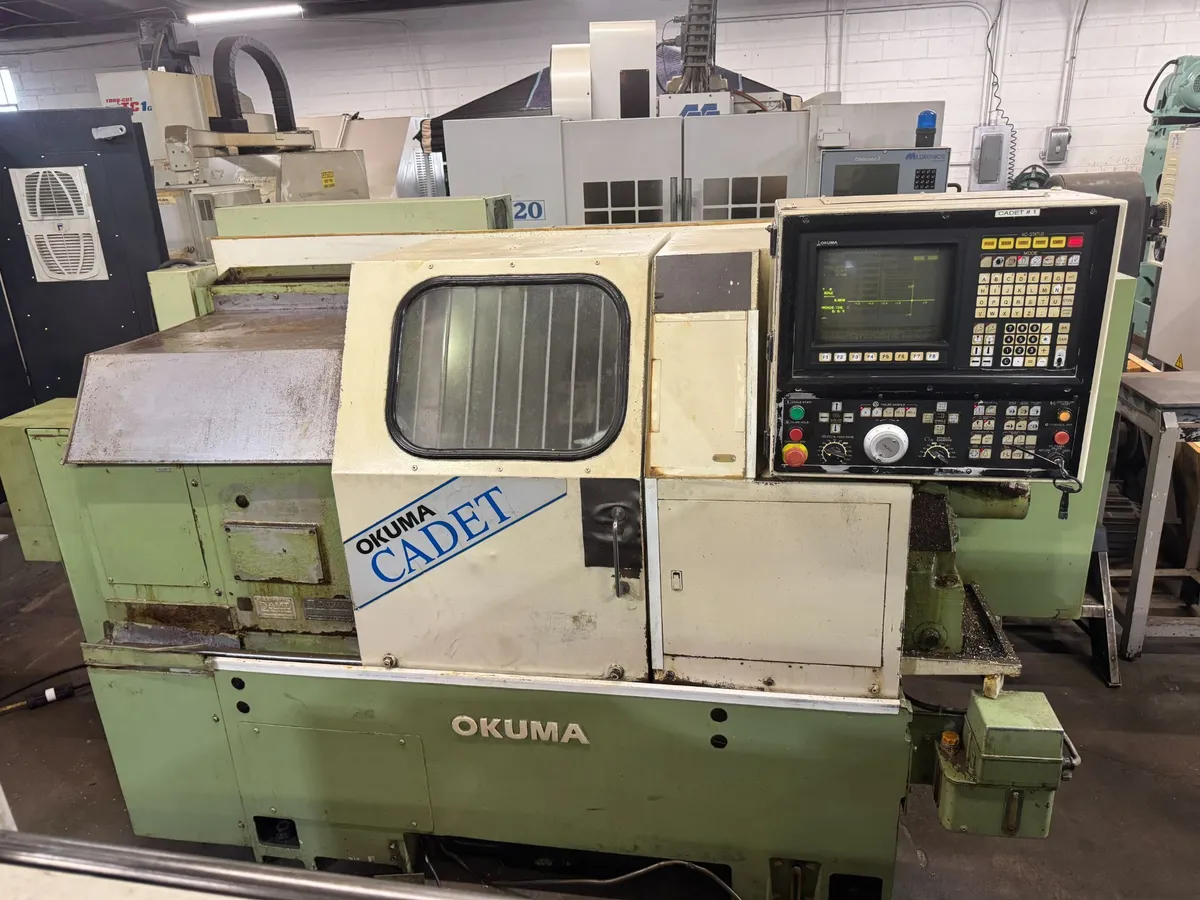

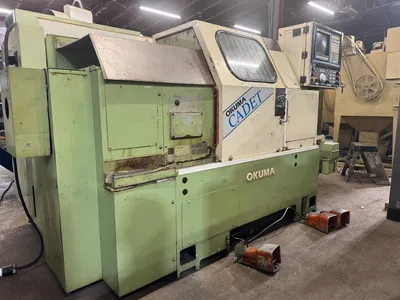

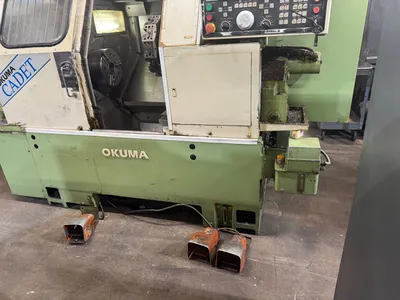

Okuma Cadet LNC-8 CNC Turning Center

Okuma Cadet LNC-8
CNC Turning Center

Stock#RV876
Model#LNC-8
Capacities & Working Range
• Max Swing Over Bed: 15.75″ (400 mm)
• Max Swing Over Carriage: 9.84″ (250 mm)
• Maximum Cutting Diameter: 6.89″ (175 mm)
• Distance Between Centers: 20.47″ (520 mm)
• Maximum Turning Length: 19.68″ (500 mm)

Spindle & Headstock
• Spindle Nose: ASA A2-6
• Spindle Bore Diameter: 2.2″ to 2.5″
• Maximum Bar Capacity: 2.00″ (50.8 mm)
• Spindle Speed Range: 75 – 4,200 RPM

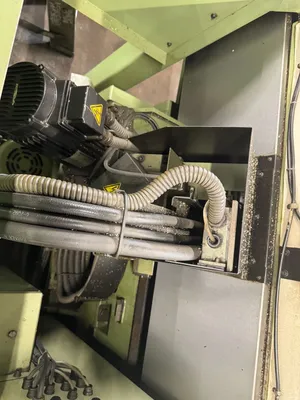

• Spindle Drive Motor: 20 HP AC (High Torque)

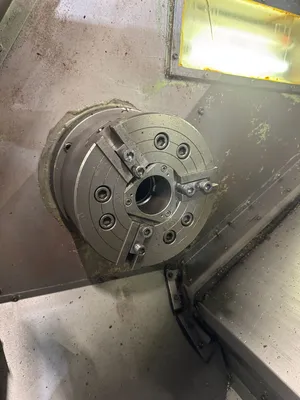

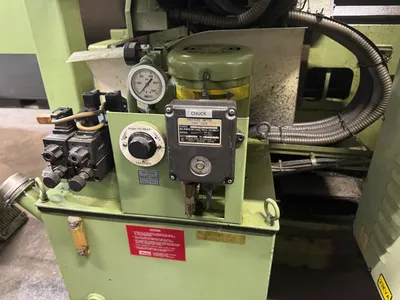

• Standard Chuck Size: 10″ Hydraulic Hollow Chuck

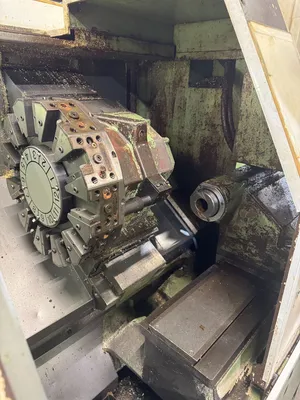

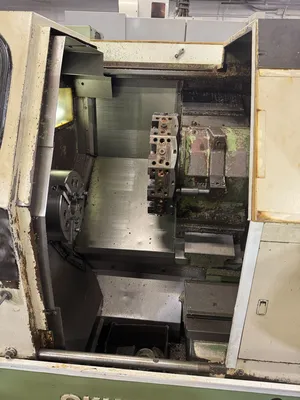

Turret & Tooling
• Turret Type: V12 Block Style (Heavy Duty Slant Bed)
• Number of Tool Stations: 12 Positions
• Turret Indexing Time: 0.8 to 0.9 seconds (station-to-station)

Axis Travel & Feed Rates
• Cross Travel (X-Axis): 8.23″ (209 mm)
• Longitudinal Travel (Z-Axis): 19.68″ (500 mm)
• Rapid Traverse (X-Axis): 472 IPM (12 m/min)
• Rapid Traverse (Z-Axis): 591 IPM (15 m/min)
• Cutting Feedrate Range: 0.0001″ – 39.37″ per revolution
• • Tailstock Quill Diameter: 3.94″ (100 mm)
• • Tailstock Quill Stroke: 4.72″ (120 mm)
• • Tailstock Internal Taper: Morse Taper #5 (MT-5)

General Footprint & Power

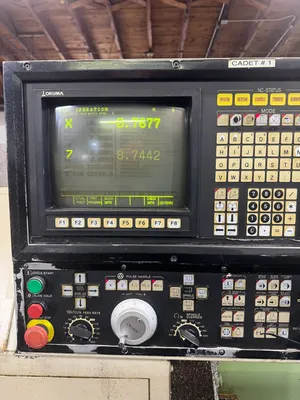

• Control System: Okuma OSP5020L CNC Control

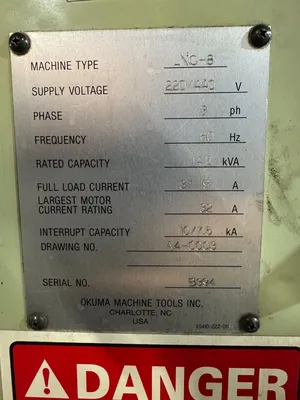

• Power Source Required: AC 220V / 440V, 3-Phase, 60 Hz
• Machine Dimensions: Approx. 107″ L x 73″ W x 75″ H (without chip conveyor)
• Approximate Weight: 9,200 lbs to 9,900 lbs
• Wires 230 Volt 3 phase
