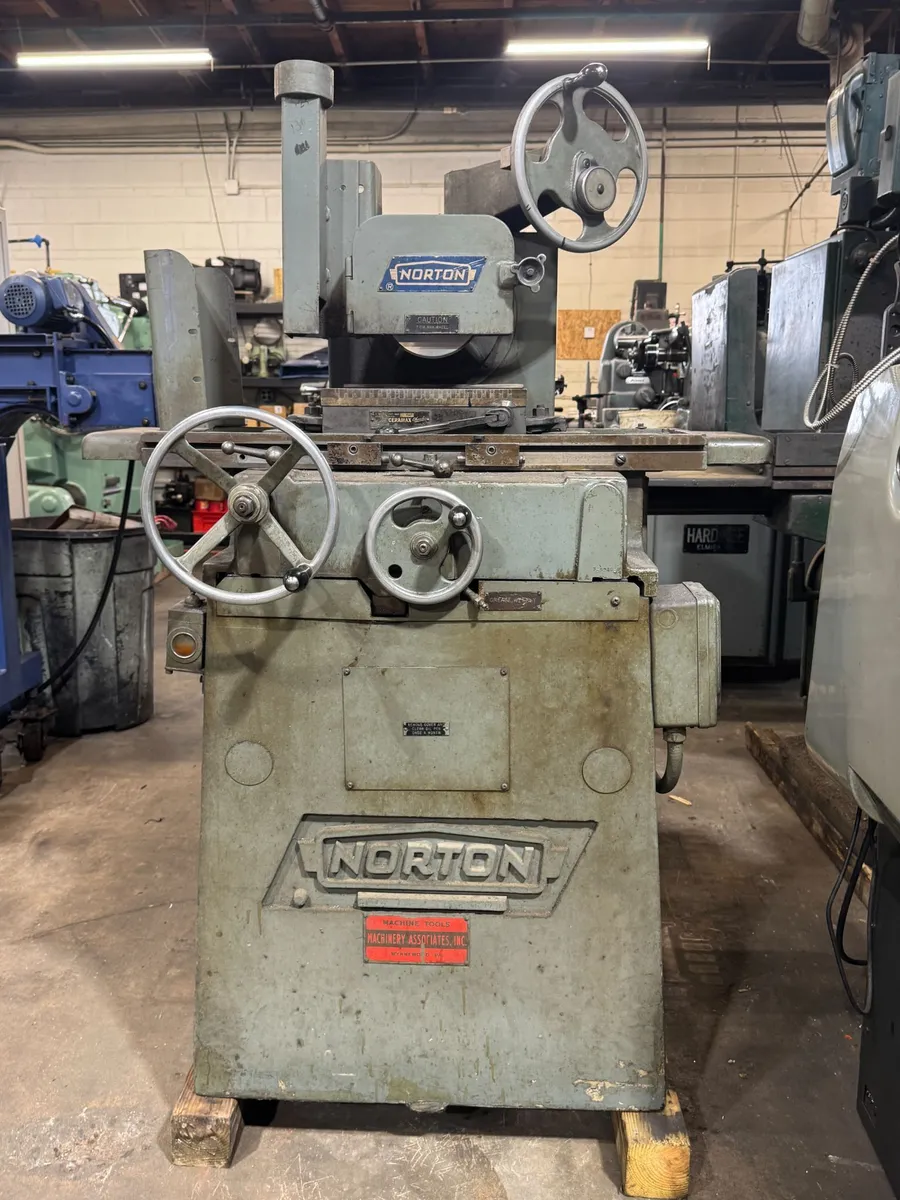

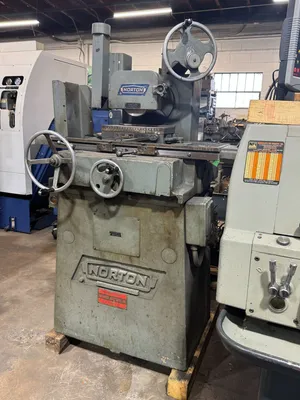

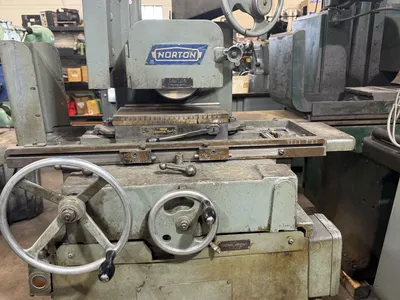

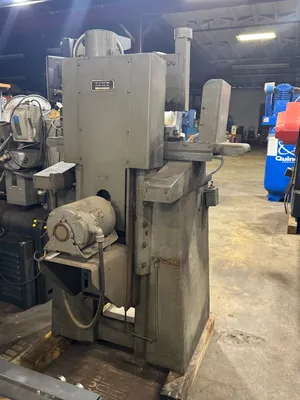

6x12 Norton TS-2 Precision Hand Surface grinder

Norton 6x12" TS-2 Precision Hand Surface Grinder

Stock#R887
ModelTS-2

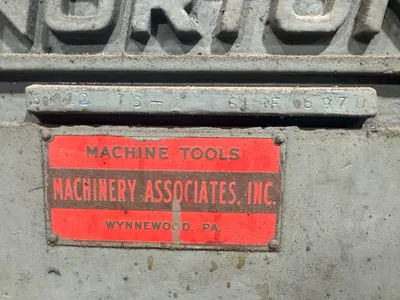

Serial#X12TS-2 RF6970

Capacities & Travels: Details standard working limits (6" x 12" surface capability), 13" max longitudinal table travel, and 11.5" vertical head movement.
Spindle & Wheel Geometry: Specifies standard 8" outer diameter x 1/2" or 3/4" width wheels configured with a 1-1/4" center hole mounting diameter.

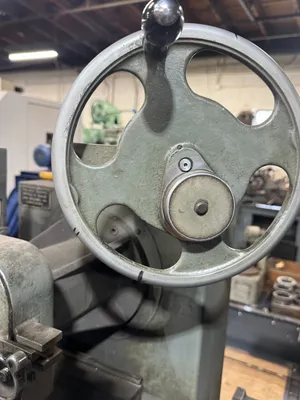

Feed Mechanical Precision: References manual handwheel configurations, standard 0.001" cross-feed index lines, and fine micro-downfeed adjustments.
High-precision hardened steel way strips and anti-friction roller bearings positioned between the saddle and the table. The rollers sit at a 45-degree angle inside the V-way tracking, Way strip rides on roller Bearings

6x12 Ceramax permanent magnetic chuck, Fine Pole
7" Max Dia. Wheel

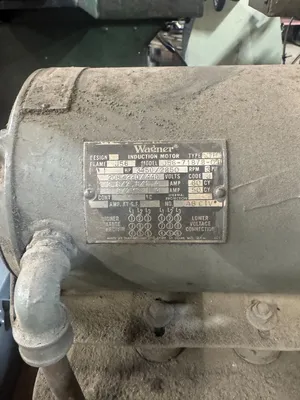

1Hp 230 Volte 3450rpm
one shot Lube
spark out guard
vac. system adapter
Weight 900lbs
Dimensions 40" x 40" x 56"H
