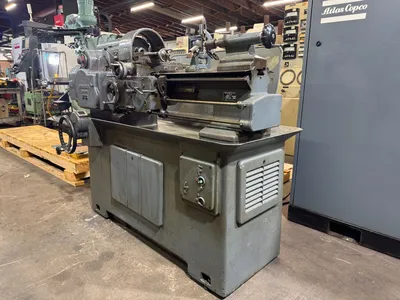

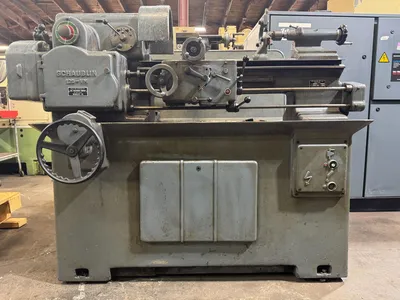

Schaublin 120-VM Tool Room Lathe 9.44 swing 23.62”Centers

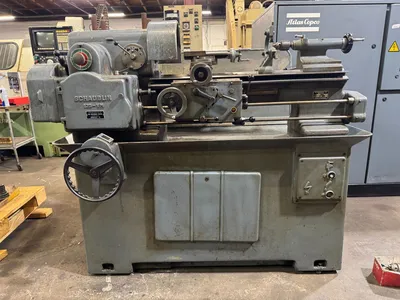

Schaublin 120-VM Tool Room Lathe
9.44 swing 23.62”Centers
240mm x 600mm

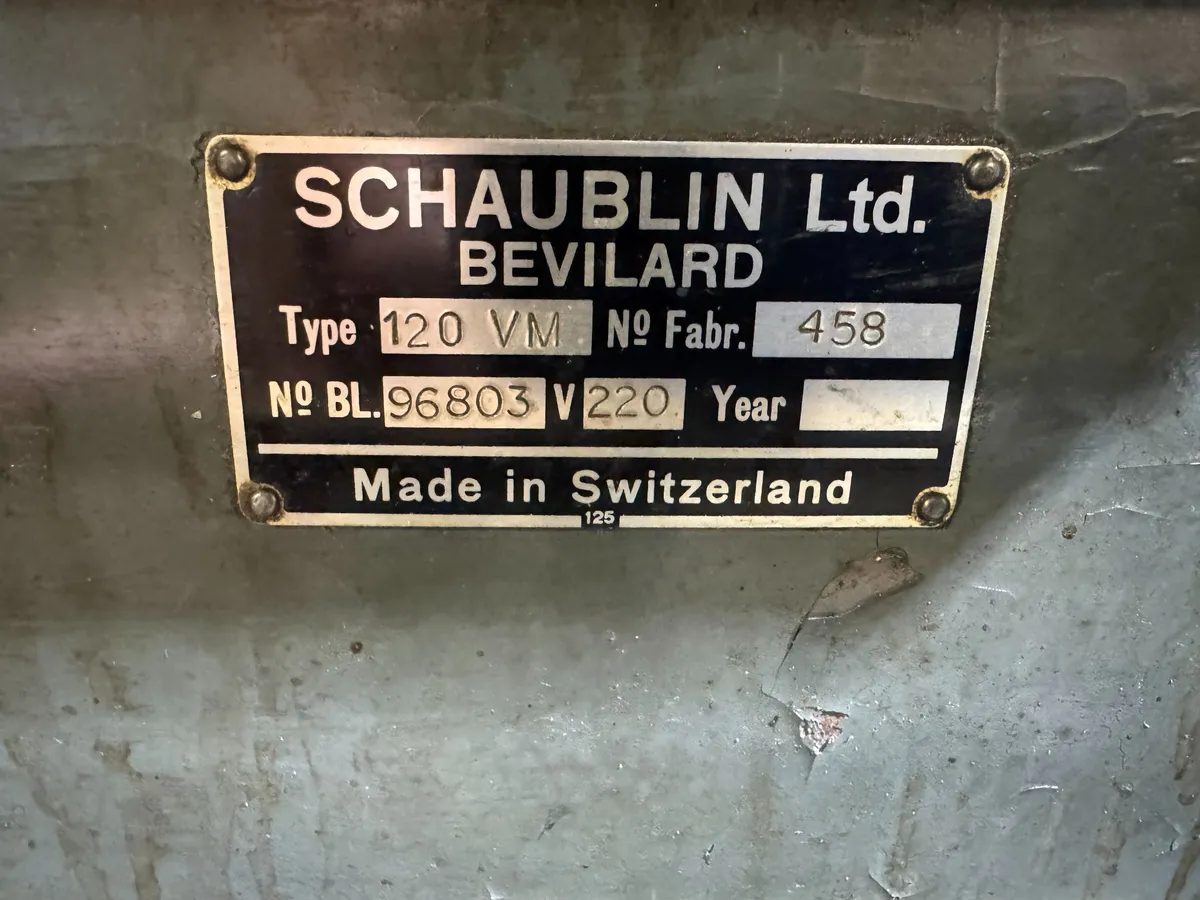

Stock#R888
Model 120-VM
Serial#458
Capacity & Workpiece Dimensions
• Center Height: 120 mm (4.72")
• Swing Over Bed: 240 mm (9.44")
• Swing Over Cross Slide: 135 mm (5.31")
• Distance Between Centers: 600 mm (23.62") (Early models featured 500 mm)

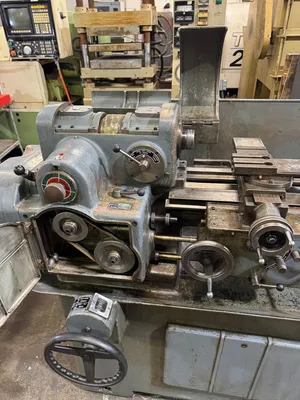

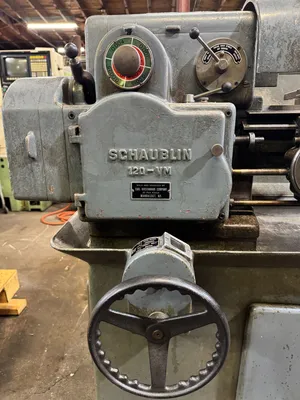

Headstock & Spindle Assembly
• Spindle Bore: 25 mm (0.98")

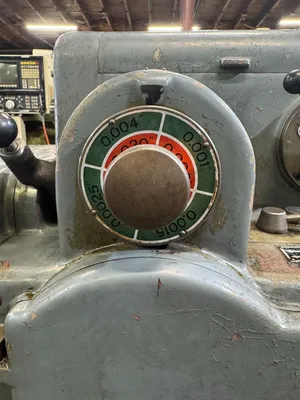

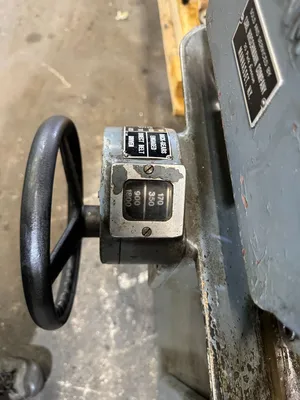

• Spindle Speeds (Stepless Variable): 60 to 2,140 RPM
• Backgear Ratio: 1 : 5.3 (encased in an oil bath)
• Spindle Indexing: Built-in dividing attachment on the lathe spindle face

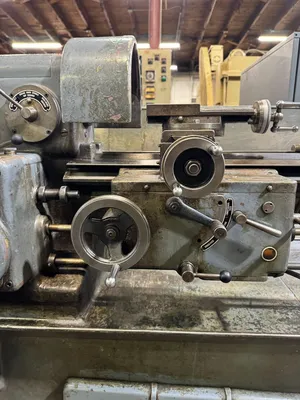

Feeds & Threading Control
• Lead Screw Location: Mounted centrally within the protected core of the bed
• Feeds Gearbox: Driven by a dedicated power belt system
• Selectable Feed Rates: 8 independent feed rates adjustable via the selector dial
• Feed Orientations: Independent power feeds available in both longitudinal and crossways directions

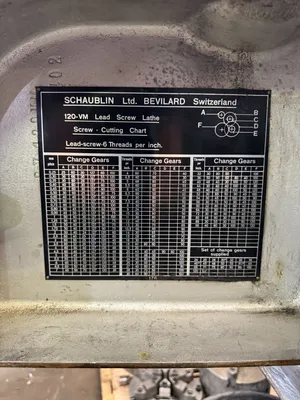

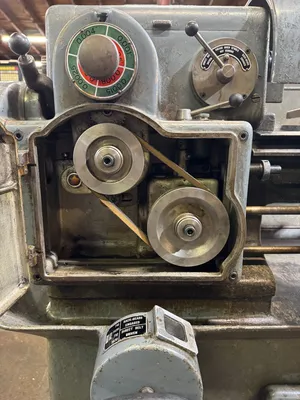

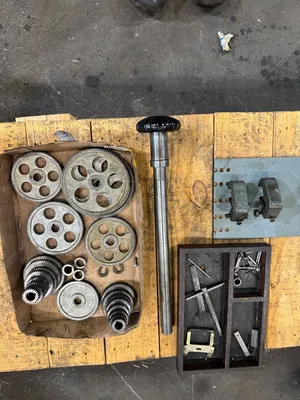

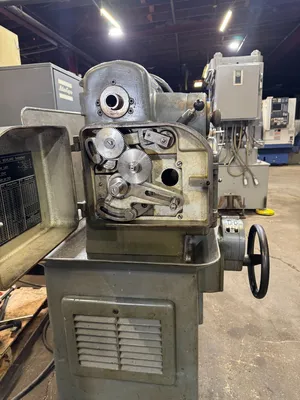

• Thread Cutting: Determined by changing a swappable set of traditional outer changewheels
Sub-structure & Physical Footprint

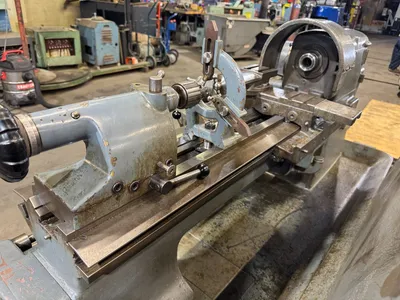

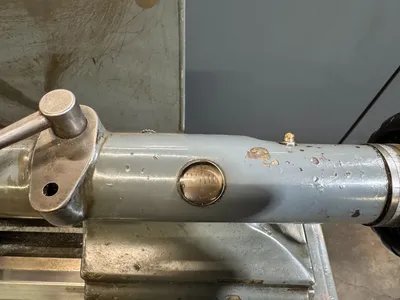

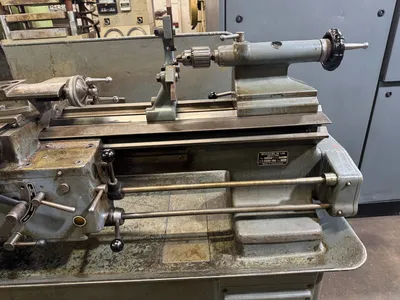

• Tailstock Taper: Morse Taper No. 2 (MT2)

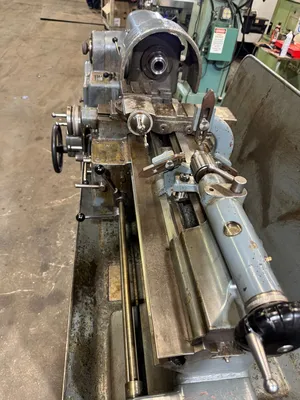

• Bed Architecture: Hardened rigid cage frame; front V-way guide with a flat rear saddle track

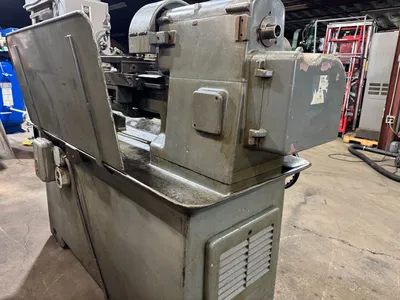

• Base Mount: Monoblock cast iron cabinet base with built-in coolant basin pump
• Machine Net Weight: ~900 kg (Approx. 1,985 lbs)

Power Requirements
• Drive Motor: 2-speed, pole-changing 3-Phase motor
• Standard Voltage Setup: 230V options

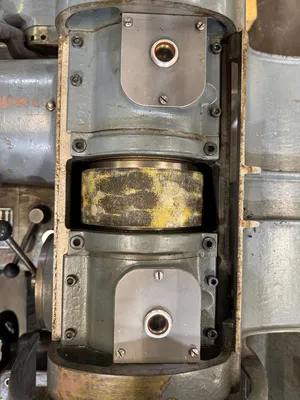

• Speed Transmission: Variomatic mechanical speed variator belt pulley unit
