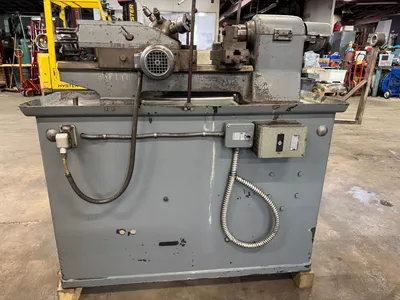

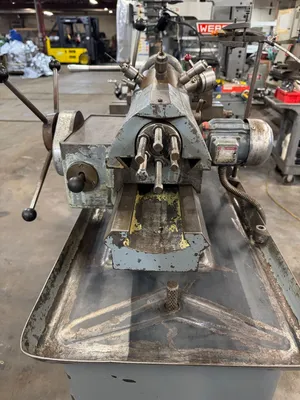

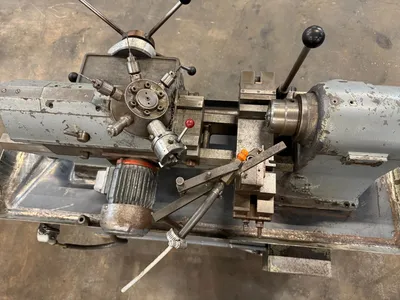

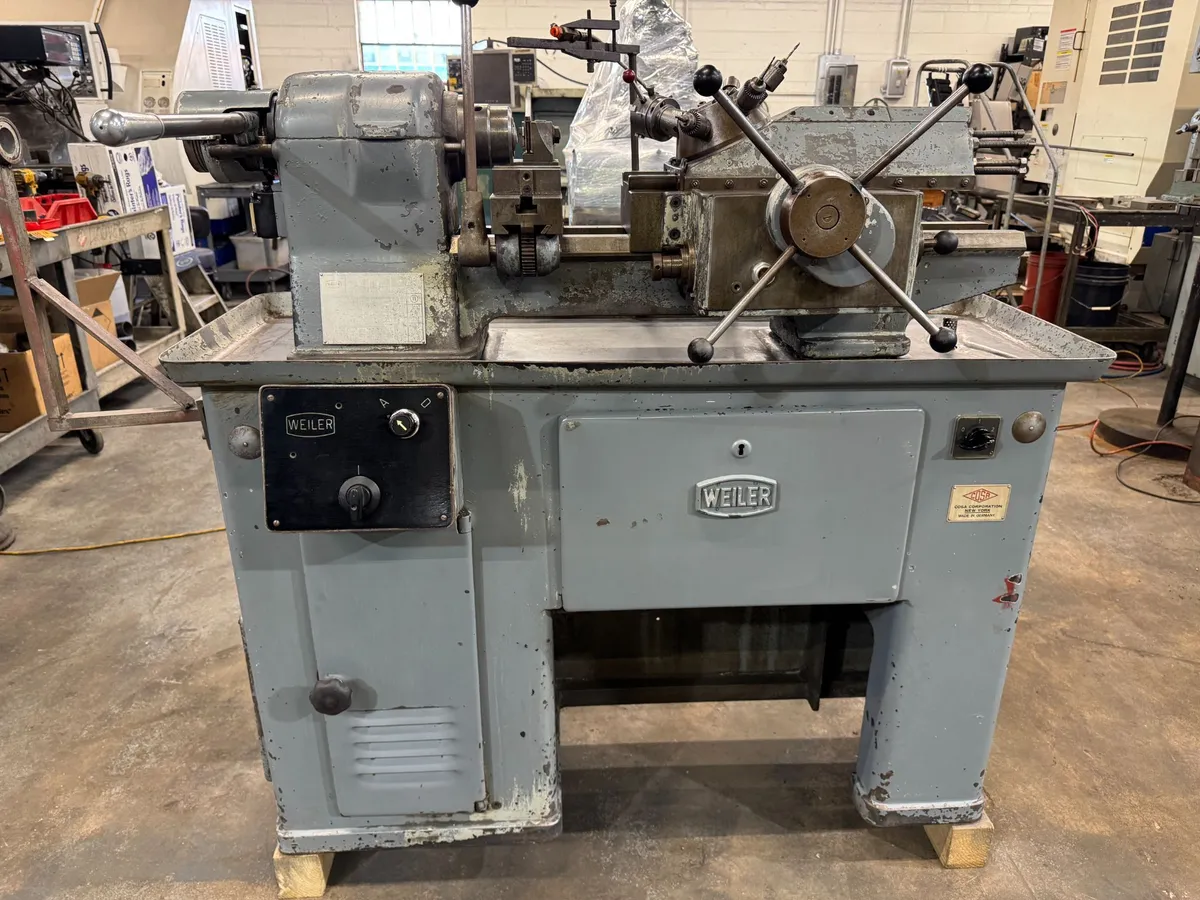

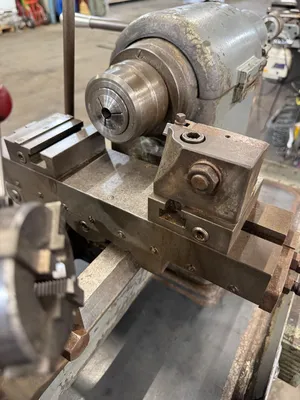

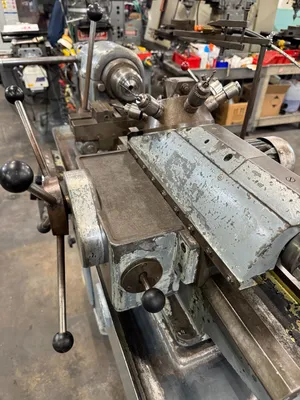

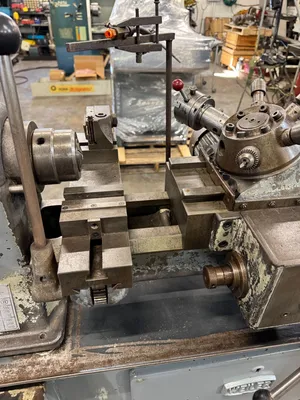

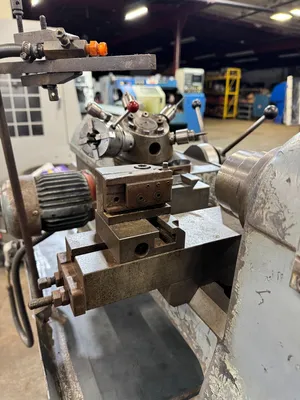

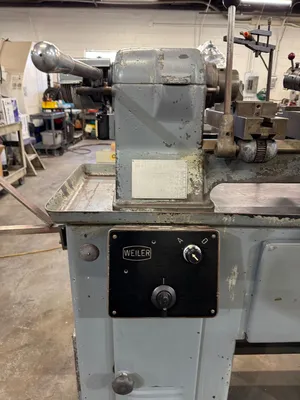

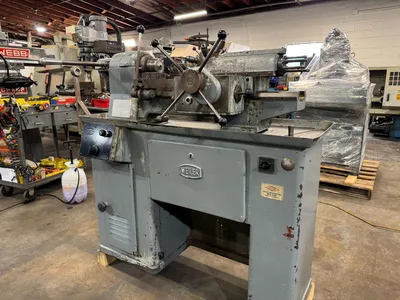

WEILER RDU 260/28 Precision CAPSTAN Lathe

Weiler RDU 260/28 Precision Capstan Lathe

Stock#RPWI842
Model# RDU 260/28
Serial#1622/810
General specifications
• Turning diameter over bed: 10.24 inches (260 mm)
Center height: 4.92 inches (125 mm)
Turning length (max): 11.81 inches (300 mm)
Distance between turret and spindle (max): 13.78 inches (350 mm)
Turret slide travel: 3.94 inches (100 mm)
Bed length: 40.16 inches (1020 mm)
Bed width: 7.87 inches (200 mm)

Spindle and drive
Spindle bore: 1.10 inches (28 mm)
Spindle speed range: 16 speeds, from 110 to 3600 rpm

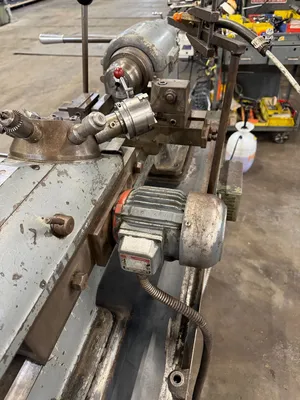

Motor: 2-speed, 0.67/2.01 horsepower (0.5/1.5 kW)
Collet system: W28 draw-in collets, with a maximum through-capacity of 0.87 inches (22 mm).
Dimensions and weight
Dimensions (L x W x H): 40.16 x 23.62 x 46.46 inches (1020 x 600 x 1180 mm)
Weight: Approximately 794 lbs (360 kg)
