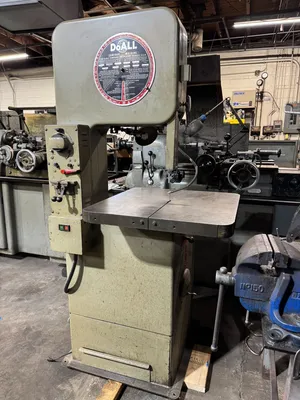

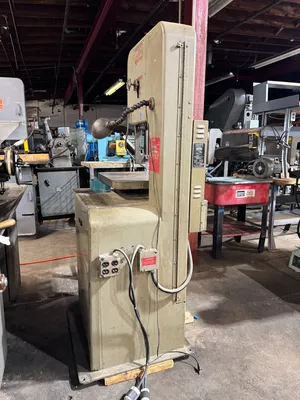

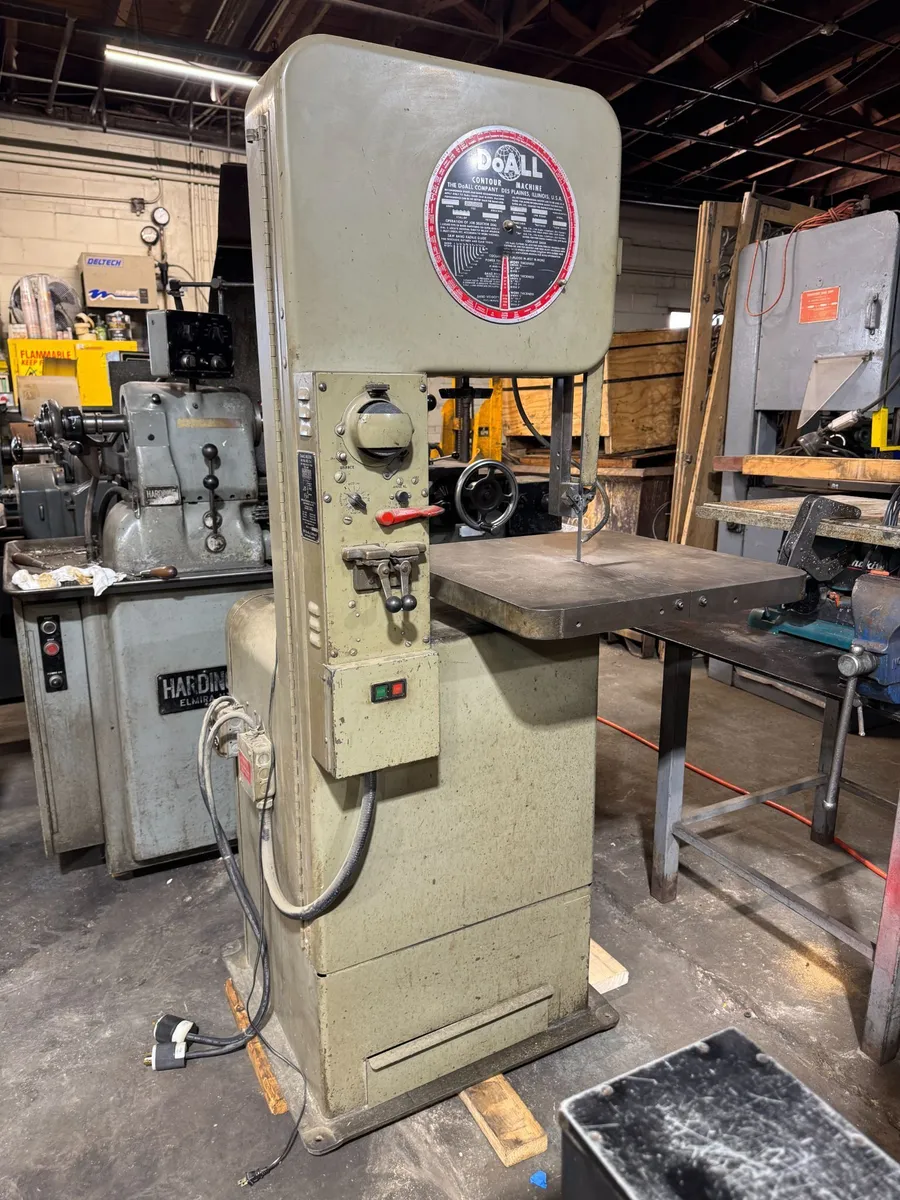

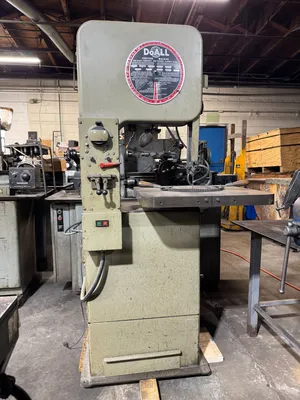

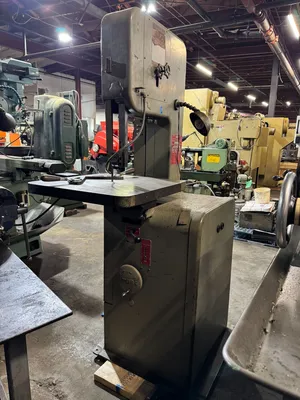

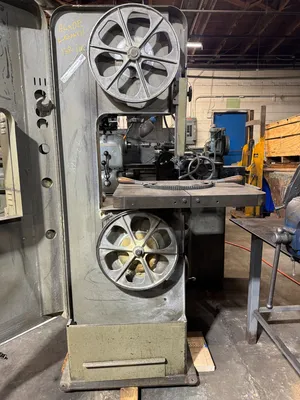

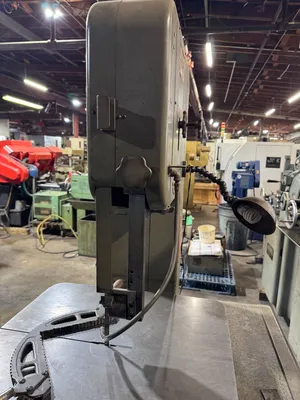

DoAll 1612-U Vertical 16" x 12" band Saw

DoAll 1612-U Vertical Bandsaw

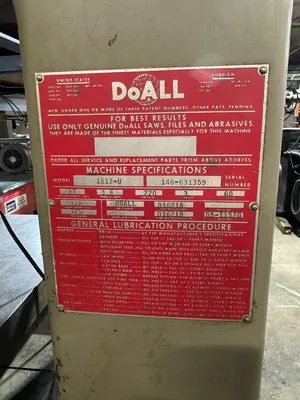

Stock#R872
Model1612-U
Serial#146-631359

Capacity & Work Envelope
• Throat Capacity (Blade to Column): 16"
• Maximum Work Height Capacity: 12"
• Clearance (Table to Guide Upper Limit): 12-1/4"

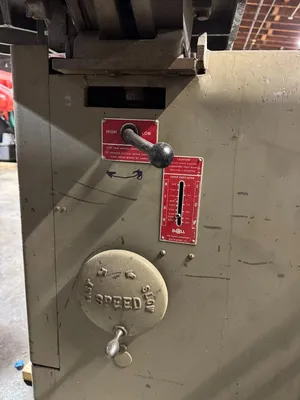

Band Speed & Transmission
• Drive Type: Variable speed Reeves-style pulley drive with a dual-range industrial gear transmission.
• Low Speed Range: 50 to 300 Feet Per Minute (FPM) (For hard steels and alloys)
• High Speed Range: 850 to 5,200 FPM (For wood, plastics, and aluminum)
• Speed Indicator: Integrated mechanical tachometer speedometer dial mounted on the upper head.
Table Specifications
• Table Size: 24" x 24" precision-ground cast iron
• Table Tilting Capacity: 45° Right, 10° Left
• Table Height from Floor: 39"
Blade & Band Component Data
• Standard Blade Length: 120" to 122"
• Blade Width Capacity: 1/16" minimum (for tight contours) up to 1/2" maximum

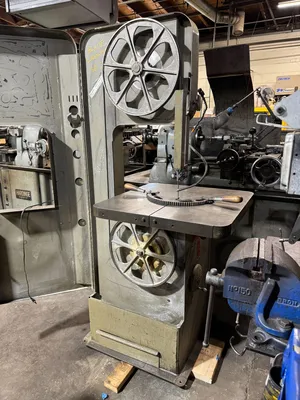

• Upper/Lower Wheel Diameter: 16" cast aluminum with replaceable rubber tires
Electrical & Accessory Integration
• Drive Motor: 1 HP or 1.5 HP (Standard option variants), 3-Phase, 60 Hz, 220V/440V
• Blade Welder Unit: Integrated DoALL DBW-15 resistance butt welder (Capacity: 1/16" to 1/2" wide carbon blades)
• Welder Accessories: Built-in blade shear blade cutter and 110V grinding wheel for flash removal.
• Air Chip Blower: Mechanical pump system venting air at the cutting guide to clear layout lines.
Physical Footprint
• Overall Machine Dimensions: ~38" Width x 32" Depth x 72" Height
• Net Shipping Weight: Approximately 1,150 lbs to 1,250 lbs
