11" X 18" HARDINGE HLV Tool Room Lathe
Have one to sell?
ConditionUsed
1 available

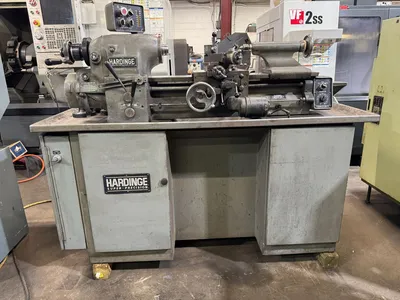

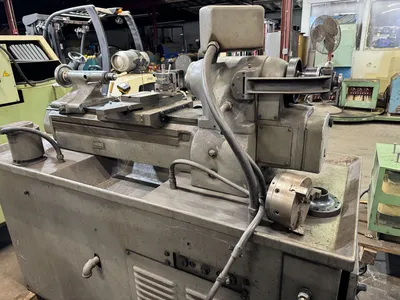

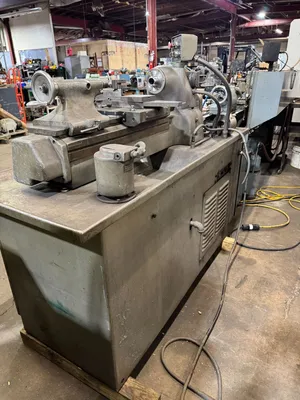

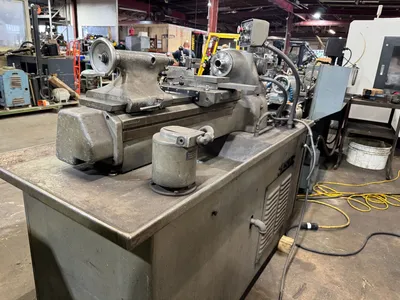

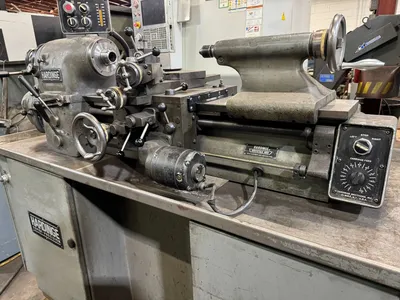

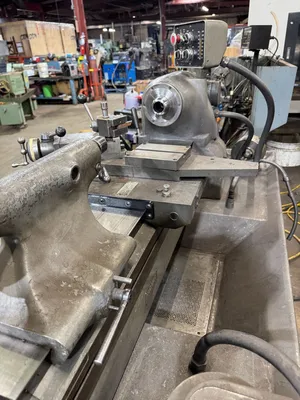

Hardinge HLV-H Tool Room lathe
Stock# R897

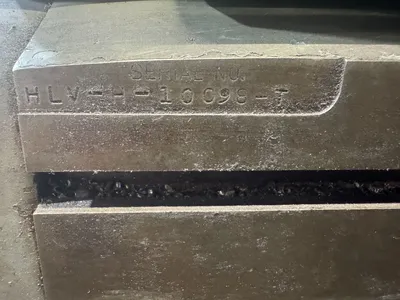

Model HLV-H
Year 1982
Capacities
Swing Over Bed 11 in (279.4 mm)
Swing Over Cross Slide 6 in (152.4 mm)
Swing Over Carriage Pad 9 in (228.6 mm)
Distance Between Centers 18 in (457.2 mm)
Power Chucking 1-3/8 in (34.9 mm)

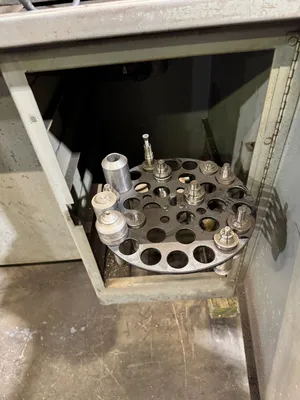

5C Collet Capacity (Round) 1-1/16 in (26.9 mm)
Step Chuck Capacity 1-1/16 in to 6 in (26.9 mm to 152.4 mm)

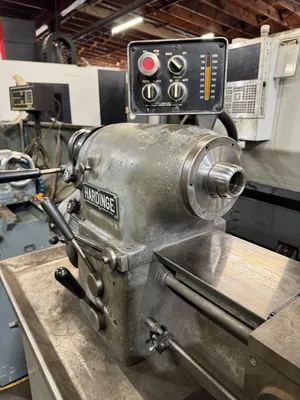

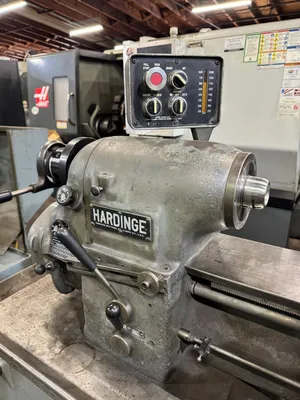

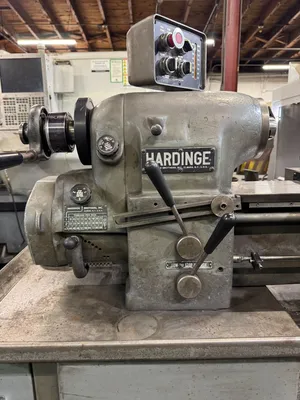

Spindle & Headstock
Spindle Nose Construction Hardinge Tapered

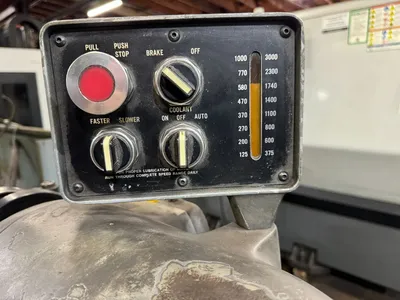

Spindle Speed Range 125 to 3000 RPM (Infinitely Variable)

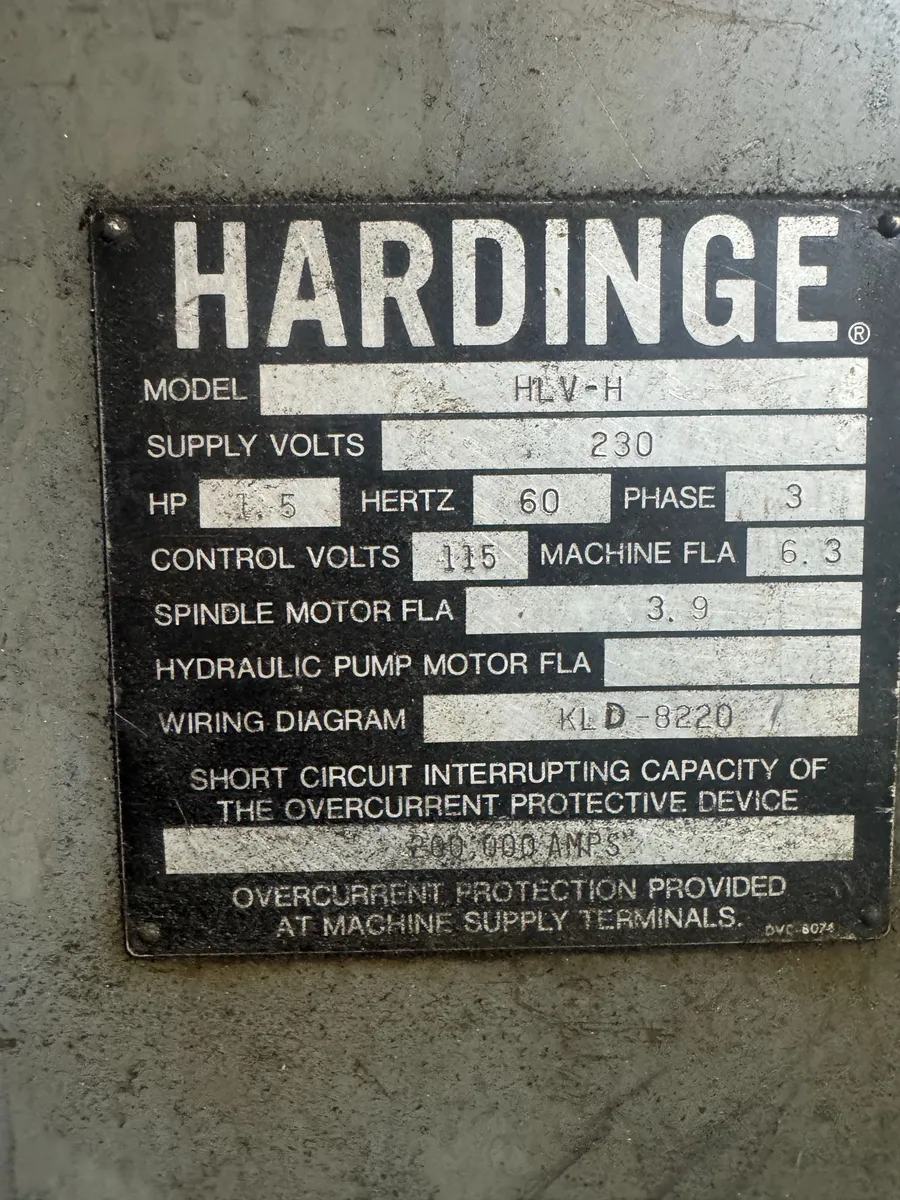

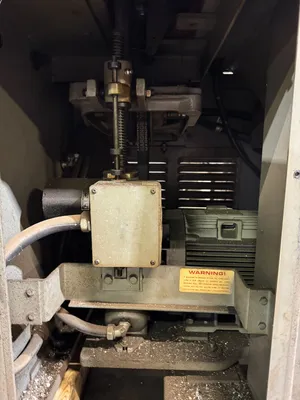

Spindle Motor 1.5 HP Two-Speed (Dual Voltage 230/460V typical)
Spindle Brake Electric Solenoid Brake
Feeds & Threading

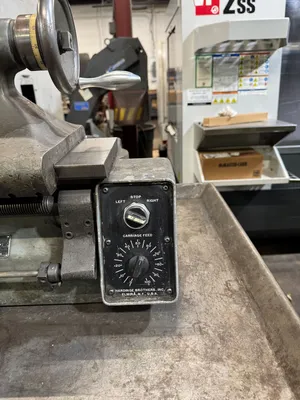

Carriage Feed Range 1/4 to 7 in/min (6.35 to 177.8 mm/min)
Cross Slide Feed Range 3/16 to 4 in/min (4.76 to 101.6 mm/min)

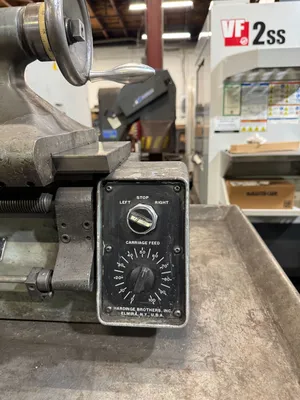

Feeding System Independent DC Motor Feed System with Variable Control
Quick-Change Gear Box Range 11 to 108 TPI (Standard English Threads)
Lead Screw Diameter 1 in (25.4 mm) - 8 TPI
Hardinge HLV-H Tool Room lathe
Stock# R897
Model HLV-H
Year 1982
Capacities
Swing Over Bed 11 in (279.4 mm)
Swing Over Cross Slide 6 in (152.4 mm)
Swing Over Carriage Pad 9 in (228.6 mm)
Distance Between Centers 18 in (457.2 mm)
Power Chucking 1-3/8 in (34.9 mm)
5C Collet Capacity (Round) 1-1/16 in (26.9 mm)
Step Chuck Capacity 1-1/16 in to 6 in (26.9 mm to 152.4 mm)
Spindle & Headstock
Spindle Nose Construction Hardinge Tapered
Spindle Speed Range 125 to 3000 RPM (Infinitely Variable)
Spindle Motor 1.5 HP Two-Speed (Dual Voltage 230/460V typical)
Spindle Brake Electric Solenoid Brake
Feeds & Threading
Carriage Feed Range 1/4 to 7 in/min (6.35 to 177.8 mm/min)
Cross Slide Feed Range 3/16 to 4 in/min (4.76 to 101.6 mm/min)
Feeding System Independent DC Motor Feed System with Variable Control
Quick-Change Gear Box Range 11 to 108 TPI (Standard English Threads)
Lead Screw Diameter 1 in (25.4 mm) - 8 TPI
Hardinge HLV-H Tool Room lathe
Stock# R897
Model HLV-H
Year 1982
Capacities
Swing Over Bed 11 in (279.4 mm)
Swing Over Cross Slide 6 in (152.4 mm)
Swing Over Carriage Pad 9 in (228.6 mm)
Distance Between Centers 18 in (457.2 mm)
Power Chucking 1-3/8 in (34.9 mm)
5C Collet Capacity (Round) 1-1/16 in (26.9 mm)
Step Chuck Capacity 1-1/16 in to 6 in (26.9 mm to 152.4 mm)
Spindle & Headstock
Spindle Nose Construction Hardinge Tapered
Spindle Speed Range 125 to 3000 RPM (Infinitely Variable)
Spindle Motor 1.5 HP Two-Speed (Dual Voltage 230/460V typical)
Spindle Brake Electric Solenoid Brake
Feeds & Threading
Carriage Feed Range 1/4 to 7 in/min (6.35 to 177.8 mm/min)
Cross Slide Feed Range 3/16 to 4 in/min (4.76 to 101.6 mm/min)
Feeding System Independent DC Motor Feed System with Variable Control
Quick-Change Gear Box Range 11 to 108 TPI (Standard English Threads)
Lead Screw Diameter 1 in (25.4 mm) - 8 TPI
Imperial
| Swing | 11" |
| Centers | 18" |
| Threading | yes |
| Power | 0.5 hp |
| RPM | 3,000 RPM |
Hardinge HLV-H Tool Room lathe
Stock# R897
Model HLV-H
Year 1982
Capacities
Swing Over Bed 11 in (279.4 mm)
Swing Over Cross Slide 6 in (152.4 mm)
Swing Over Carriage Pad 9 in (228.6 mm)
Distance Between Centers 18 in (457.2 mm)
Power Chucking 1-3/8 in (34.9 mm)
5C Collet Capacity (Round) 1-1/16 in (26.9 mm)
Step Chuck Capacity 1-1/16 in to 6 in (26.9 mm to 152.4 mm)
Spindle & Headstock
Spindle Nose Construction Hardinge Tapered
Spindle Speed Range 125 to 3000 RPM (Infinitely Variable)
Spindle Motor 1.5 HP Two-Speed (Dual Voltage 230/460V typical)
Spindle Brake Electric Solenoid Brake
Feeds & Threading
Carriage Feed Range 1/4 to 7 in/min (6.35 to 177.8 mm/min)
Cross Slide Feed Range 3/16 to 4 in/min (4.76 to 101.6 mm/min)
Feeding System Independent DC Motor Feed System with Variable Control
Quick-Change Gear Box Range 11 to 108 TPI (Standard English Threads)
Lead Screw Diameter 1 in (25.4 mm) - 8 TPI
