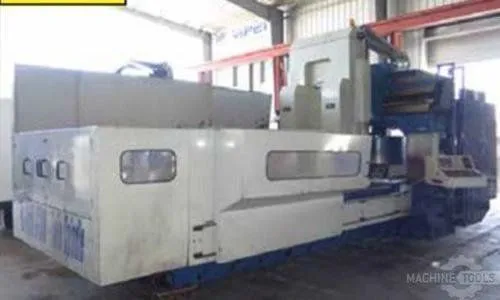

(USED) VMC-B4000GTDW/35HP/MITSU. M530 (YEAR: 2006,) Bridge Type
GENERAL SPECIFICATIONS:
CONTROL
MITSUBISHI M530
WORKING SURFACE
165"X100"
T-SLOT
1.1"W X 13 X 7.9"
MAX TABLE LOAD
45000LBS
TRAVEL:
X Axis
160"
Y Axis
80"
Z Axis
32.3''
DISTANCE SPINDLE TO TABLE
5.3"-37.6"
WIDTH BETWEEN COLUMN
108.3"
DISTANCE SPINDLE CENTER TO COLUMN
22.95"
DISTANCE BETWEEN TWIN SPINDLES
40"
SPINDLE:
SPINDLE TYPE
GEAR
SPINDLE SPEED
6000RPM
SPINDLE NOSE TAPER
#ISO50
FEED:
CUTTING FEED RATE
276IPM
RAPID TRAVERSE(X.Y.Z)
393IPM
TOOL CHANGER:
AUTOMATIC TOOL CHANGER TYPE
DRUM TYPE x 2
TOOL STORAGE CAPACITY
2X20PCS
MAX. TOOL WEIGHT
33LBS
MAX. TOOL SIZE
7.8"X14"
TOOL SELECTION
RANDOM
TOOL SHANK
CAT50
PULL STUD BOLT
P50T-1
MOTOR:
SPINDLE DRIVE MOTOR
35HP
STANDARD ACCESSORIES
-
AUTO LUBRICATION SYSTEM
-
WORK LIGHT
-
LEVELING BOLTS AND BLOCKS
-
ADJUSTING BOLTS AND BLOCKS
-
RS232 INTERFACE
-
COOLANT SYSTEM
-
SPINDLE OIL COOLER
-
SCREW TYPE CHIP AUGER
-
LINK TYPE CHIP CONVEYOR
-
AUTOMATIC POWER OFF
-
CONVECTION HEAT EXCHANGER IN CONTROL CABINET
-
OPERATION MANUAL & ELECTRICAL DRAWING
-
REMOTE MANUAL PULSE GENERATOR
-
OPERATION FINISH LAMP
